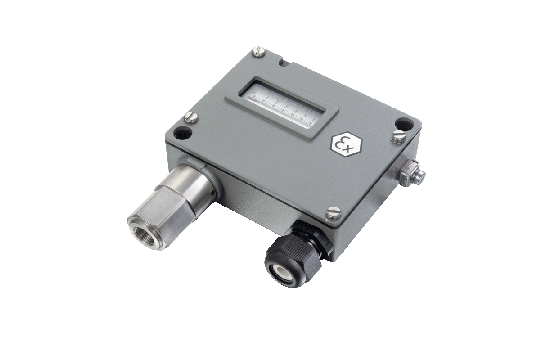

Main features
- Rugged aluminium housing, option: housing stainless steel
- IP66-rated protection
- Diverse mounting positions
- Ex db eb IIC T6 Gb
- Ex tb IIIC T80°C Db
About
Technical Data
Product code | 944/947/953 |
---|---|
Name | EXPK |
Designation | Ex Pressostat |
Product category | Mechanical pressure switches |
Measuring range | 1 ... 10 to 60 ... 600 bar |
Measuring principle | Piston |
Applications | |
Approval / conformity | IECEx, ATEX, UKEX |
Repeatability | ± 1.0 % FS typ. |
Output signal | 1 Floating change-over contact (SPDT) |
Electrical connections | Screw terminal |
Pressure connections | G1/4" f, G1/2" m |
Media temperature | NBR: -30°C ... +100°C FPM: -15°C ... +150°C |
Ambient temperature | -40°C ... +65°C |
Downloads Go to file downloads
Datasheet:
-
H72270s CN 944 947 953 EXPK Ex Pressostatcn
pdf 553.8KB
-
H72270s DE 944 947 953 EXPK Ex Pressostatde
pdf 494.4KB
-
H72270s EN 944 947 953 EXPK Ex Pressostaten
pdf 493.4KB
-
H72270s ES 944 947 953 EXPK Ex Pressostates
pdf 494.2KB
-
H72270s FR 944 947 953 EXPK Ex Pressostatfr
pdf 494KB
-
H72270s IT 944 947 953 EXPK Ex Pressostatit
pdf 493.6KB
-
H72270s JP 944 947 953 EXPK Ex Pressostatjp
pdf 554.8KB
-
H72270s PL 944 947 953 EXPK Ex Pressostatpl
pdf 495KB
-
H72270s PT 944 947 953 EXPK Ex Pressostatpt
pdf 494.4KB
Manual:
Flyer:
-
H70917s CN 944 947 953 EXPK Ex Pressostatcn
pdf 3.7MB
-
H70917s DE 944 947 953 EXPK Ex Pressostatde
pdf 3.7MB
-
H70917s EN 944 947 953 EXPK Ex Pressostaten
pdf 3.7MB
-
H70917s ES 944 947 953 EXPK Ex Pressostates
pdf 3.7MB
-
H70917s FR 944 947 953 EXPK Ex Pressostatfr
pdf 3.7MB
-
H70917s IT 944 947 953 EXPK Ex Pressostatit
pdf 3.7MB
-
H70917s JP 944 947 953 EXPK Ex Pressostatjp
pdf 3.7MB
-
H70917s PL 944 947 953 EXPK Ex Pressostatpl
pdf 3.7MB
-
H70917s PT 944 947 953 EXPK Ex Pressostatpt
pdf 3.7MB
Certificates:
