Main features
- Rugged aluminium housing
- Protection IP 65
- Diverse mounting positions
About
Technical Data
| Product code | 920/924/932 |
|---|---|
| Name | PD |

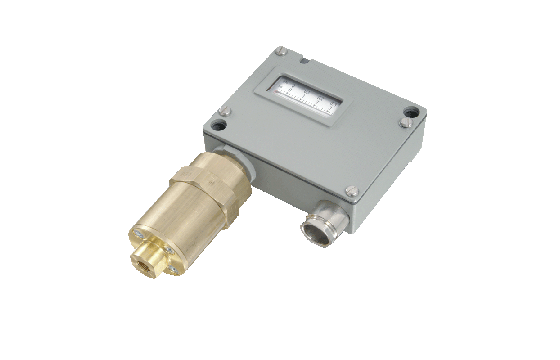

| Designation | Differential Pressure Pressostat |
| Product category | Mechanical pressure switches |
| Measuring range | -1 ... 6 to -1 ... 18 bar |
| Measuring principle | Bellow |
| Approval / conformity | IECEx, ATEX, UKEX |
| Repeatability | ± 1.0 % FS typ. |
| Output signal | 1 Floating change-over contact (SPDT) |
| Electrical connections | Screw terminal |
| Pressure connections | G1/4 f, G1/8 f, G1/2 m |
| Media temperature | -40°C ... +150°C |
| Ambient temperature | -25°C ... +70°C |
Downloads Go to file downloads
Datasheet:
-
H72256u CN 920 924 932 EXPD Ex Differential Pressostatcn
pdf 589KB
-
H72256u DE 920 924 932 EXPD Ex Differential Pressostatde
pdf 530.7KB
-
H72256u EN 920 924 932 EXPD Ex Differential Pressostaten
pdf 529.8KB
-
H72256u ES 920 924 932 EXPD Ex Differential Pressostates
pdf 530.7KB
-
H72256u FR 920 924 932 EXPD Ex Differential Pressostatfr
pdf 530.6KB
-
H72256u IT 920 924 932 EXPD Ex Differential Pressostatit
pdf 530.1KB
-
H72256u JP 920 924 932 EXPD Ex Differential Pressostatjp
pdf 590.9KB
-
H72256u PL 920 924 932 EXPD Ex Differential Pressostatpl
pdf 531.6KB
-
H72256u PT 920 924 932 EXPD Ex Differential Pressostatpt
pdf 531.3KB
Manual:
Certificates:
-
CE UKCA Declaration of conformity 900 904 912 920 924 932 944 947 953 EXP EXPKen
pdf 69KB
-
BV Pressostats 9xx Seriesen
pdf 1.1MB
-
CCS Pressure Switch 9xxen
pdf 268.1KB
-
RINA Pressure Switches 9xxen
pdf 1.7MB
