Main features
- Rugged aluminium housing
- Protection IP65
- Any mounting position possible
About
Technical Data

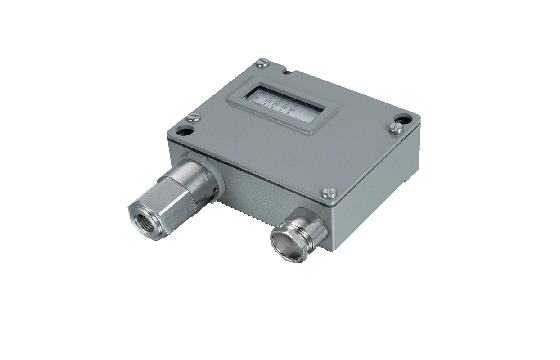

Product code | 944/947 |
---|---|
Name | PK |
Designation | Pressostat |
Product category | Mechanical pressure switches |
Measuring range | 1 ... 10 to 60 ... 600 bar |
Measuring principle | Piston |
Applications | Engine manufacturingHydraulicsMachine toolsRailwaysShipbuilding |
Approval / conformity | ABS, BV, CCS, DNV-GL, KRS, LRS, RINA EN60730-1/ EN60730-2-6: Type 2.B.H |
Repeatability | ± 1.0 % FS typ. |
Output signal | 1 Floating change-over contact (SPDT) |
Electrical connections | Screw terminal |
Pressure connections | G1/4" f, G1/2" m |
Media temperature | O-Ring NBR: -30°C ... +100°C O-Ring FKM: -15°C ... +150°C |
Ambient temperature | -20°C ... +70°C |
