Main features
- Rugged design for harsh environments
- Wide temperature range
- Excellent long-term stability
- Very compact design

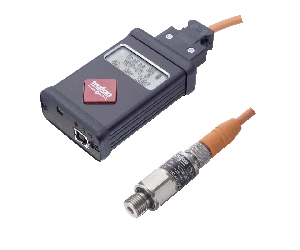

- Switchpoint factory set or programmable on site with Trafag Sensor Communicator SC
About

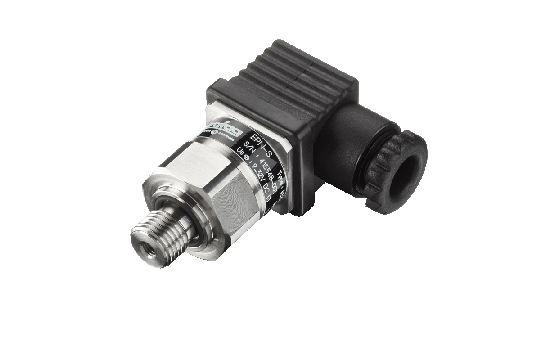

The Electronic Pressure Switch EPN-S is based on the well-proven EPN transmitter family. It stands for reliable accuracy over a wide temperature range and excellent long-term stability even in harshest environments in the shipbuilding and railway industry. The switchpoint is factory set or can be programmed on site using Trafag’s Sensor Communicator SC.
Technical Data
Product code | 8320 |
---|---|
Name | EPN-S |
Designation | Electronic Pressure Switch |
Product category | Electronic pressure switches |
Measuring range | 0 ... 2.5 a 0 ... 600 bar 0 ... 30 a 0 ... 7500 psi |
Measuring principle | Thin-film-on-steel |
Applications | Engine manufacturingHVACHydraulicsMachine toolsRailwaysShipbuilding |
Approval / conformity | DNV-GL, RMRS EN 50155 (Railways) EN 45545-2 (Fire protection, railways) |
Accuracy @ 25°C typ. | ± 0.5 % FS typ. (Switchpoint) |
Output signal | Switching output: 1 PNP |
Electrical connections | EN175301-803-A (DIN43650-A); Cable |
Pressure connections | G1/4" m (Seal); 1/4"NPT m; G1/2" m, DIN3852-A; M14x1.5 m, DIN3852-A; 1/2"NPT m |
Media temperature | -40°C ... +125°C |
Ambient temperature | Standard: -25°C ... +85°C Option accessory 67: -40°C ... +125°C |
Downloads Go to file downloads
Datasheet:
-
H72333l CN 8320 EPN-S Electronic Pressure Switchcn
pdf 768.1KB
-
H72333l DE 8320 EPN-S Electronic Pressure Switchde
pdf 703.1KB
-
H72333l EN 8320 EPN-S Electronic Pressure Switchen
pdf 702KB
-
H72333l ES 8320 EPN-S Electronic Pressure Switches
pdf 703.3KB
-
H72333l FR 8320 EPN-S Electronic Pressure Switchfr
pdf 703.4KB
-
H72333l IT 8320 EPN-S Electronic Pressure Switchit
pdf 702.5KB
-
H72333l JP 8320 EPN-S Electronic Pressure Switchjp
pdf 772.6KB
-
H72333l PL 8320 EPN-S Electronic Pressure Switchpl
pdf 704.4KB
-
H72333l PT 8320 EPN-S Electronic Pressure Switchpt
pdf 703.6KB
Manual:
-
H73333g Electronic Pressure Switch EPN-S 8320en
pdf 860.7KB
Flyer:
-
H70652l CN 8320 EPN-S Electronic Pressure Switchcn
pdf 3.9MB
-
H70652l DE 8320 EPN-S Electronic Pressure Switchde
pdf 3.9MB
-
H70652l EN 8320 EPN-S Electronic Pressure Switchen
pdf 3.9MB
-
H70652l ES 8320 EPN-S Electronic Pressure Switches
pdf 3.9MB
-
H70652l FR 8320 EPN-S Electronic Pressure Switchfr
pdf 3.9MB
-
H70652l IT 8320 EPN-S Electronic Pressure Switchit
pdf 3.8MB
-
H70652l JP 8320 EPN-S Electronic Pressure Switchjp
pdf 3.9MB
-
H70652l PL 8320 EPN-S Electronic Pressure Switchpl
pdf 3.9MB
-
H70652l PT 8320 EPN-S Electronic Pressure Switchpt
pdf 3.9MB
Certificates:
-
CE UKCA Declaration of conformity Pressure Transmitteren
pdf 73.9KB
-
DNVGL EPN-S El-Pressure Switch 8320en
pdf 87.1KB
-
RMRS Pressure Switch EPNS 8320en
pdf 1.1MB
