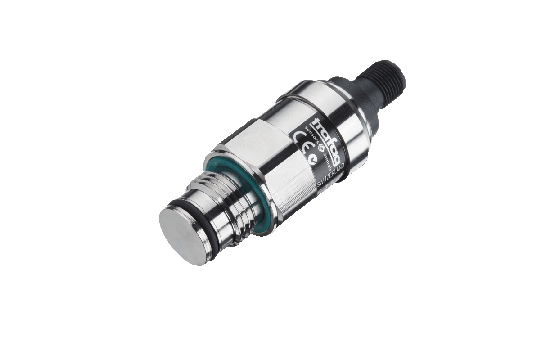

FPT 8236 Flush Membrane Transmitter

Back to overview

Main features

  • Flush membrane with smooth and plain surface
  • Membrane in Duplex steel 1.4462
  • Fully welded sensor system
  • Excellent long-term stability
About
The FPT 8236 pressure transmitter impresses with an absolutely smooth and robust flush-mounted measuring diaphragm made of corrosion-resistant duplex steel. Trafag’s proprietary thin-film-on-steel sensor technology ensures a wide temperature range and excellent long-term stability.

Technical Data

More Information
Product code 8236
Name FPT
Designation Flush Membrane Transmitter
Product category

Pressure transmitters

Measuring principle Thin-film-on-steel
Accuracy @ 25°C typ. ± 0.5 % FS typ.
Output signal 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 … 4.5 VDC ratiometric
Electrical connections EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable
Pressure connections G1/2" m, flush membrane
Media temperature –10°C ... +125°C
Ambient temperature max. –10°C ... +125°C (UL-rated ambient temperature: -20°C ... +80°C) details see section Electrical Connection

Downloads Go to file downloads

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Measuring range [bar] Over pressure max. [bar] Output signal

FPT2.5A

0 ... 2.5

5

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 75 2393 05 0000 0000 19 58 61

FPT4.0A

0 ... 4

8

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 76 2393 05 0000 0000 19 58 61

FPT6.0A

0 ... 6

12

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 77 2393 05 0000 0000 19 58 61

FPT10.0A

0 ... 10

20

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 78 2393 05 0000 0000 19 58 61

FPT16.0A

0 ... 16

32

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 79 2393 05 0000 0000 19 58 61

FPT25.0A

0 ... 25

50

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 80 2393 05 0000 0000 19 58 61

FPT40.0A

0 ... 40

80

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 81 2393 05 0000 0000 19 58 61

FPT100.0A

0 ... 100

200

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 83 2393 05 0000 0000 19 58 61

FPT2.5M

0 ... 2.5

5

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 75 2393 35 0000 0000 19 33 61

FPT4.0M

0 ... 4

8

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 76 2393 35 0000 0000 19 33 61

FPT6.0M

0 ... 6

12

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 77 2393 35 0000 0000 19 33 61

FPT10.0M

0 ... 10

20

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 78 2393 35 0000 0000 19 33 61

FPT16.0M

0 ... 16

32

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 79 2393 35 0000 0000 19 33 61

FPT25.0M

0 ... 25

50

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 80 2393 35 0000 0000 19 33 61

FPT40.0M

0 ... 40

80

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 81 2393 35 0000 0000 19 33 61

FPT100.0M

0 ... 100

200

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.1
Supply [VDC]: 9 ... 30
Type Code: 8236 83 2393 35 0000 0000 19 33 61
