ECT 8472 Industrial Pressure Transmitter

Back to overview

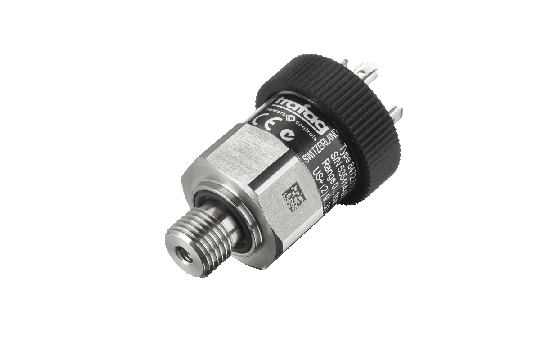

main product photo

Main features

    • Excellent media compatibility
    • Relative or absolute pressure measurement
    • Titanium version optional
    • Wide temperature range
About
The economical pressure transmitter ECT 8472 is based on the tried and true ECT line of transmitters. The wide media temperature range from -25 to 125°C in combination with a comprehensive set of of features and options makes the ECT 8472 pressure transmitter a versatile solution suitable for most industrial applications.

Technical Data

More Information
Product code 8472
Name ECT
Designation Industrial Pressure Transmitter
Product category

Pressure transmitters
Measuring range 0 ... 1 to 0 ... 400 bar
0 ... 15 to 0 ... 5000 psi
Measuring principle Thick-film-on-ceramic
Applications

Hydraulics
Machine tools
Water treatment
Accuracy @ 25°C typ. ± 0.5 % FS typ.
Output signal 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC,
0 ... 10 VDC, 0.5 ... 4.5 VDC ratiom.
Electrical connections EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable
Pressure connections

G1/4 f; G1/4 m;
G1/2 m, DIN3852-A;
G1/2 m, DIN3852-E;
G1/2 m, DIN3852-E, with inner cone;
1/4NPT m, ANSI B1.20.1;
Product Request

Standard variants of this product
Grouped product items
Product Name Measuring range [bar] Over pressure max. [bar] Output signal

ECT1.0A

0 ... 1

3.2

4 ... 20 mA
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 30
Type Code: 8472 71 5717 05 0000 0000 19 58 61

ECT1.6A

0 ... 1.6

3.2

4 ... 20 mA
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 30
Type Code: 8472 73 5717 05 0000 0000 19 58 61

ECT2.5A

0 ... 2.5

5

4 ... 20 mA
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 30
Type Code: 8472 75 5717 05 0000 0000 19 58 61

ECT4.0A

0 ... 4

8

4 ... 20 mA
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 30
Type Code: 8472 76 5717 05 0000 0000 19 58 61

ECT6.0A

0 ... 6

12

4 ... 20 mA
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 30
Type Code: 8472 77 5717 05 0000 0000 19 58 61

ECT10.0A

0 ... 10

20

4 ... 20 mA
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 30
Type Code: 8472 78 5717 05 0000 0000 19 58 61

ECT16.0A

0 ... 16

32

4 ... 20 mA
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 30
Type Code: 8472 79 5717 05 0000 0000 19 58 61

ECT25.0A

0 ... 25

50

4 ... 20 mA
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 30
Type Code: 8472 80 5717 05 0000 0000 19 58 61

ECT40.0A

0 ... 40

80

4 ... 20 mA
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 30
Type Code: 8472 81 5717 05 0000 0000 19 58 61

ECT60.0A

0 ... 60

120

4 ... 20 mA
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 30
Type Code: 8472 82 5717 05 0000 0000 19 58 61

ECT1.0V

0 ... 1

3.2

0 ... 10 VDC
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Type Code: 8472 71 5717 05 0000 0000 17 58 61

ECT1.6V

0 ... 1.6

3.2

0 ... 10 VDC
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Type Code: 8472 73 5717 05 0000 0000 17 58 61

ECT2.5V

0 ... 2.5

5

0 ... 10 VDC
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Type Code: 8472 75 5717 05 0000 0000 17 58 61

ECT4.0V

0 ... 4

8

0 ... 10 VDC
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Type Code: 8472 76 5717 05 0000 0000 17 58 61

ECT6.0V

0 ... 6

12

0 ... 10 VDC
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Type Code: 8472 77 5717 05 0000 0000 17 58 61

ECT10.0V

0 ... 10

20

0 ... 10 VDC
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Type Code: 8472 78 5717 05 0000 0000 17 58 61

ECT16.0V

0 ... 16

32

0 ... 10 VDC
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Type Code: 8472 79 5717 05 0000 0000 17 58 61

ECT25.0V

0 ... 25

50

0 ... 10 VDC
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Type Code: 8472 80 5717 05 0000 0000 17 58 61

ECT40.0V

0 ... 40

80

0 ... 10 VDC
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Type Code: 8472 81 5717 05 0000 0000 17 58 61

ECT60.0V

0 ... 60

120

0 ... 10 VDC
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Type Code: 8472 82 5717 05 0000 0000 17 58 61
