Main features
- Measuring ranges from 100 mbar
- Relative or absolute pressure measurement
- Frontal membrane optional
- Dielectric strength: 600 VAC / 710 VDC, meets EN 50155 (Railways)
About
Technical Data

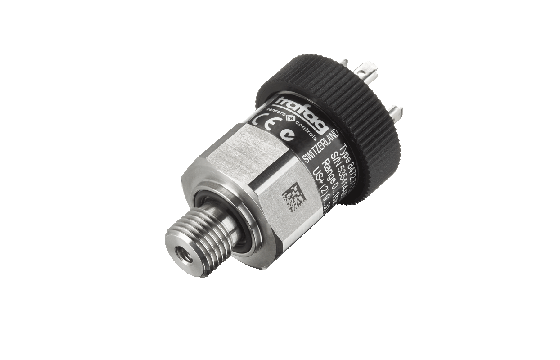

Product code | 8478 |
---|---|
Name | ECR |
Designation | Railway Pressure Transmitter |
Product category | Pressure transmitters |
Measuring range | 0 ... 0.1 a 0 ... 60 bar 0 ... 1.5 a 0 ... 1000 psi |
Measuring principle | Thick-film-on-ceramic |
Approval / conformity | EN 50155 (Railway) EN 45545-2 (Fire protection) |
Accuracy @ 25°C typ. | ± 0.3 % FS typ. (± 0.5 % FS typ., ± 1 % FS typ.) |
Output signal | 4 ... 20 mA |
Electrical connections | EN175301-803-A (DIN43650-A); M12x1; Packard Metri Pack |
Pressure connections | G1/4" m; G3/4" frontal membrane |
Media temperature | -25°C ... +125°C |
Ambient temperature | -25°C ... +125°C |
Downloads Go to file downloads
Datasheet:
-
H72337n CN 8478 ECR Railway Pressure Transmittercn
pdf 901.2KB
-
H72337n DE 8478 ECR Railway Pressure Transmitterde
pdf 778.3KB
-
H72337n EN 8478 ECR Railway Pressure Transmitteren
pdf 825.5KB
-
H72337n ES 8478 ECR Railway Pressure Transmitteres
pdf 826.5KB
-
H72337n FR 8478 ECR Railway Pressure Transmitterfr
pdf 826.6KB
-
H72337n IT 8478 ECR Railway Pressure Transmitterit
pdf 825.9KB
-
H72337n JP 8478 ECR Railway Pressure Transmitterjp
pdf 920.4KB
-
H72337n PL 8478 ECR Railway Pressure Transmitterpl
pdf 827.8KB
-
H72337n PT 8478 ECR Railway Pressure Transmitterpt
pdf 827.1KB
Manual:
Flyer:
-
H70603n CN 8478 ECR Railway Pressure Transmittercn
pdf 4MB
-
H70603n DE 8478 ECR Railway Pressure Transmitterde
pdf 4.1MB
-
H70603n EN 8478 ECR Railway Pressure Transmitteren
pdf 4MB
-
H70603n ES 8478 ECR Railway Pressure Transmitteres
pdf 4MB
-
H70603n FR 8478 ECR Railway Pressure Transmitterfr
pdf 3.9MB
-
H70603n IT 8478 ECR Railway Pressure Transmitterit
pdf 4MB
-
H70603n JP 8478 ECR Railway Pressure Transmitterjp
pdf 3.9MB
-
H70603n PL 8478 ECR Railway Pressure Transmitterpl
pdf 4MB
-
H70603n PT 8478 ECR Railway Pressure Transmitterpt
pdf 4MB
Certificates:
STEP files and software:
-
847X.XX.X7.17.35en
STEP 337.2KB
-
847X.XX.X7.17.51en
STEP 851.3KB
-
847X.XX.X9.42.35en
STEP 378.8KB
-
847X.XX.X9.42.51en
STEP 893.3KB
-
847X.XX.XX.17.05en
STEP 1.7MB
-
847X.XX.XX.17.35en
STEP 410.5KB
-
847X.XX.XX.17.51en
STEP 926KB
