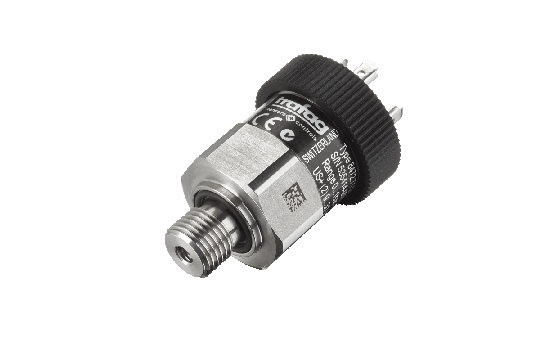

ECT 8473 Industrial Pressure Transmitter

Back to overview

Main features

  • Measuring ranges from 100 mbar
  • Excellent media compatibility
  • Relative or absolute pressure measurement
  • Titanium version optional
  • Frontal membrane optional
About
The economic pressure transmitter ECT 8473 is based on the tried and true ECT line of transmitters with the wide media temperature range from -25 to 125°C. The enhanced accuracy and the low pressure ranges down to 100 mbar in combination with a comprehensive set of of features, materials and options makes the ECT 8473 pressure transmitter an ideal and versatile solution suitable for a wide variety of applications.

Technical Data

More Information
Product code 8473
Name ECT
Designation Industrial Pressure Transmitter
Product category

Pressure transmitters

Measuring range 0 ... 0.1 a 0 ... 40 bar 0 ... 1.5 a 0 ... 500 psi
Measuring principle Thick-film-on-ceramic
Accuracy @ 25°C typ. ± 0.3 % FS typ. (± 0.5 % FS typ., ± 1 % FS typ.)
Output signal 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 ... 4.5 VDC ratiom.
Electrical connections EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable
Pressure connections G1/4" f; G1/4" m; G1/2" m, DIN3852-A; G1/2" m, DIN3852-E; G1/2" m, DIN3852-E, with inner cone; 1/4"NPT m, ANSI B1.20.1; 1/8"NPT m, ANSI B1.20.1; 7/16"-20UNF m, SAE4 (J1926); 7/16”-20UNF m, DIN3866; 7/16”-20UNF f, SAE J512, valve opener; 9/16"-18UNF m, SAE
Media temperature -25°C ... +125°C
Ambient temperature max. -25°C ... +125°C (UL-rated ambient temperature: -20°C ... +80°C) details see section Electrical Connection

Downloads Go to file downloads

STEP files and software:

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Measuring range [bar] Over pressure max. [bar] Output signal

*ECT0.4A

0 ... 0.4

1.2

4 ... 20 mA

Accuracy @ 25°C typ.: 0.3
Pressure connection: G1/4" male
Type Code: 8473 69 5417 05 0000 0000 19 58 61

*ECT0.6A

0 ... 0.6

1.2

4 ... 20 mA

Accuracy @ 25°C typ.: 0.3
Pressure connection: G1/4" male
Type Code: 8473 70 5417 05 0000 0000 19 58 61

*ECT0.4V

0 ... 0.4

1.2

0 ... 10 VDC

Accuracy @ 25°C typ.: 0.3
Pressure connection: G1/4" male
Type Code: 8473 69 5417 05 0000 0000 17 58 61

*ECT0.6V

0 ... 0.6

1.2

0 ... 10 VDC

Accuracy @ 25°C typ.: 0.3
Pressure connection: G1/4" male
Type Code: 8473 70 5417 05 0000 0000 17 58 61

*ECT0.2A

0 ... 0.2

1.2

4 ... 20 mA

Accuracy @ 25°C typ.: 0.5
Pressure connection: G1/4" male
Type Code: 8473 68 5417 05 0000 0000 19 58 61

*ECT0.2V

0 ... 0.2

1.2

0 ... 10 VDC

Accuracy @ 25°C typ.: 0.5
Pressure connection: G1/4" male
Type Code: 8473 68 5417 05 0000 0000 17 58 61

*ECTF0.6A

0 ... 0.6

1.2

4 ... 20 mA

Accuracy @ 25°C typ.: 0.3
Pressure connection: G3/4" frontal membrane
Type Code: 8473 70 5652 05 0000 0000 19 58 61

*ECTF0.4A

0 ... 0.4

1.2

4 ... 20 mA

Accuracy @ 25°C typ.: 0.3
Pressure connection: G3/4" frontal membrane
Type Code: 8473 69 5652 05 0000 0000 19 58 61

*ECT0.1A

0 ... 0.1

1.2

4 ... 20 mA

Accuracy @ 25°C typ.: 1.0
Pressure connection: G1/4" male
Type Code: 8473 66 5417 05 0000 0000 19 58 61

*ECTF0.2A

0 ... 0.2

1.2

4 ... 20 mA

Accuracy @ 25°C typ.: 0.5
Pressure connection: G3/4" frontal membrane
Type Code: 8473 68 5652 05 0000 0000 19 58 61

*ECTF0.1A

0 ... 0.1

1.2

4 ... 20 mA

Accuracy @ 25°C typ.: 1.0
Pressure connection: G3/4" frontal membrane
Type Code: 8473 66 5652 05 0000 0000 19 58 61

*ECTF1.0A

0 ... 1

2

4 ... 20 mA

Accuracy @ 25°C typ.: 0.3
Pressure connection: G3/4" frontal membrane
Type Code: 8473 71 5652 05 0000 0000 19 58 61

*ECT0.1V

0 ... 0.1

1.2

0 ... 10 VDC

Accuracy @ 25°C typ.: 1.0
Pressure connection: G1/4" male
Type Code: 8473 66 5417 05 0000 0000 17 58 61

*ECTF1.6A

0 ... 1.6

3.2

4 ... 20 mA

Accuracy @ 25°C typ.: 0.3
Pressure connection: G3/4" frontal membrane
Type Code: 8473 73 5652 05 0000 0000 19 58 61

*ECTF2.5A

0 ... 2.5

5

4 ... 20 mA

Accuracy @ 25°C typ.: 0.3
Pressure connection: G3/4" frontal membrane
Type Code: 8473 75 5652 05 0000 0000 19 58 61

*ECTF4.0A

0 ... 4

8

4 ... 20 mA

Accuracy @ 25°C typ.: 0.3
Pressure connection: G3/4" frontal membrane
Type Code: 8473 76 5652 05 0000 0000 19 58 61

*ECTF6.0A

0 ... 6

12

4 ... 20 mA

Accuracy @ 25°C typ.: 0.3
Pressure connection: G3/4" frontal membrane
Type Code: 8473 77 5652 05 0000 0000 19 58 61

*ECTF10.0A

0 ... 10

20

4 ... 20 mA

Accuracy @ 25°C typ.: 0.3
Pressure connection: G3/4" frontal membrane
Type Code: 8473 78 5652 05 0000 0000 19 58 61

ECT0.16A

0 ... 0.16

1.2

4 ... 20 mA

Accuracy @ 25°C typ.: 1.0
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 30
Pressure connection: G1/4" male
Type Code: 8473 67 5417 05 0000 0000 19 58 61

ECT0.16V

0 ... 0.16

1.2

0 ... 10 VDC

Accuracy @ 25°C typ.: 1.0
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8473 67 5417 05 0000 0000 17 58 61

ECTF0.16A

0 ... 0.16

1.2

4 ... 20 mA

Accuracy @ 25°C typ.: 1.0
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 30
Pressure connection: G3/4" frontal membrane
Type Code: 8473 67 5652 05 0000 0000 19 58 61
