Main features
- Smallest design
- Relative or absolute pressure measurement
- Excellent temperature resistance
- Improved vibration resistance
- Completely welded steel sensor system without additional seals
About

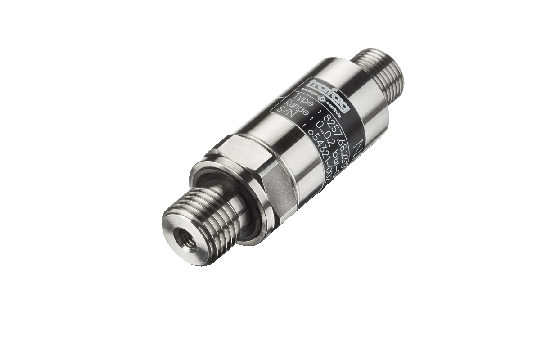

The very compact NSL low pressure transmitter is the only pressure transmitter in the market with thin-film-on-steel-membrane and pressure ranges down to 0 ... 200 mbar. This combination allows also for low pressure ranges accurate measurements with excellent longterm stability. Through the extraordinary high burst pressures up to 125 times nominal pressure the NSL is the first choice for critical applications.
Technical Data
Product code | 8257 |
---|---|
Name | NSL |
Designation | Low Pressure Transmitter |
Product category | Pressure transmitters |
Measuring range | 0 ... 0.2 to 0 ... 2.5 bar 0 ... 3 to 0 ... 30 psi |
Measuring principle | Thin-film-on-steel |
Applications | Engine manufacturingMachine toolsProcess technologyShipbuildingTest benchesWater treatment |
Approval / conformity | DNV-GL |
Accuracy @ 25°C typ. | 0.15 ... 0.8 % FS typ. |
Output signal | 4 ... 20 mA, 0 ... 5 VDC, 0 ... 10 VDC, 0.5 ... 4.5 VDC ratiometric |
Electrical connections | Industrial standard, contact distance 9.4 mm; M12x1; MIL-C 26482 |
Pressure connections | G1/4" m; 1/4" NPT m; 1/4" NPT f; 9/16"-18UNF m, SAE6 (J1926) |
Media temperature | -40°C ... +125°C |
Ambient temperature | -40°C ... +125°C |
