P/PS 900/904/912

P/PS 900/904/912 Pressostat

Back to overview

Shipbuilding

Skip to the end of the images gallery

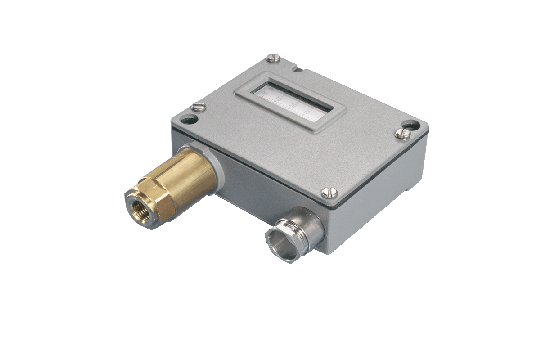

main product photo

Skip to the beginning of the images gallery

Main features

Rugged aluminium housing
Protection IP65
Any mounting position possible

About

Technical Data

More Information
Product code	900/904/912
Name	P/PS
Designation	Pressostat
Product category	Mechanical pressure switches
Measuring range	-0.9 ... 1.5 a 10 ... 100 bar 5 ... 50 a 125 ... 1500 psi
Measuring principle	Bellows
Applications	Engine manufacturing Hydraulics Machine tools Railways Shipbuilding
Approval / conformity	ABS, BV, CCS, DNV-GL, KRS, LRS, RINA EN60730-1/ EN60730-2-6: Type 2.B.H
Repeatability	± 1.0 % FS typ.
Output signal	1 Floating change-over contact (SPDT)
Electrical connections	Screw terminal
Pressure connections	G1/4" f, G1/2" m, 1/4"NPT f
Media temperature	-40°C ... +150°C
Ambient temperature	-25°C ... +70°C

Downloads Go to file downloads

Datasheet:

H72252t CN 900 904 912 PS Pressostat
cn
pdf 657.8KB
H72252t DE 900 904 912 PS Pressostat
de
pdf 593.2KB
H72252t EN 900 904 912 PS Pressostat
en
pdf 592.5KB
H72252t ES 900 904 912 PS Pressostat
es
pdf 593.2KB
H72252t FR 900 904 912 PS Pressostat
fr
pdf 593.2KB
H72252t IT 900 904 912 PS Pressostat
it
pdf 592.8KB
H72252t JP 900 904 912 PS Pressostat
jp
pdf 666.2KB
H72252t PL 900 904 912 PS Pressostat
pl
pdf 594KB
H72252t PT 900 904 912 PS Pressostat
pt
pdf 593.8KB

Manual:

H71261k Instruction Pressostat PXX
en
pdf 365.4KB

Flyer:

H70911t CN 900 904 912 PS Pressostat
cn
pdf 3.8MB
H70911t DE 900 904 912 PS Pressostat
de
pdf 3.7MB
H70911t EN 900 904 912 PS Pressostat
en
pdf 3.7MB
H70911t ES 900 904 912 PS Pressostat
es
pdf 3.7MB
H70911t FR 900 904 912 PS Pressostat
fr
pdf 3.7MB
H70911t IT 900 904 912 PS Pressostat
it
pdf 3.7MB
H70911t JP 900 904 912 PS Pressostat
jp
pdf 3.8MB
H70911t PL 900 904 912 PS Pressostat
pl
pdf 3.7MB
H70911t PT 900 904 912 PS Pressostat
pt
pdf 3.7MB

Certificates:

CE UKCA Declaration of conformity 1xx 3xx 4xx 5xx 6xx 7xx 87x6 87x8 9xx 990 991 992 993
en
pdf 74.2KB
ABS Pressure Switch 900 904 912 CH
en
pdf 1.3MB
ABS Pressure Switch 900 904 912 CZ
en
pdf 1.3MB
BV Pressostats 9xx Series
en
pdf 577KB
CCS Pressure Switch 9xx
en
pdf 268.1KB
DNVGL Pressure Switch 9XX
en
pdf 203.4KB
KRS Pressure Switch 9xx 9x0
en
pdf 420.2KB
LR Pressure Switch 900 Series
en
pdf 451.3KB
RINA Pressure Switches 900 904 912
en
pdf 1.3MB

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product

Grouped product items

Product Name	Measuring range [bar]	Over pressure max. [bar]

0 ... 4

12

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 900 2376 903

4 ... 40

40

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 900 2381 907

1 ... 10

24

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 900 2378 905

0 ... 6

12

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 904 2377 903

4 ... 40

40

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 904 2381 907

1 ... 16

24

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 904 2379 905

0 ... 6

12

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 900 2377 903

1 ... 16

24

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 900 2379 905

2 ... 25

40

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 900 2380 907

0.2 ... 2.5

10

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 900 2675 901

-0.9 ... 1.5

10

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 900 2672 900

0.2 ... 2.5

10

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 904 2675 901

-0.9 ... 1.5

10

Sensor material: Bronze (CuSn8)

Sensor housing material: Brass (CuZn39Pb3)

Type Code: 904 2672 900
