Main features
- Pressure ranges from 100 mbar
- Media temperature to 150°C
- EMC protection, IEC 61000
- Option: Lightning protection (IEC 61000-4-5), 10kA (8/20 µs)
About
Technical Data

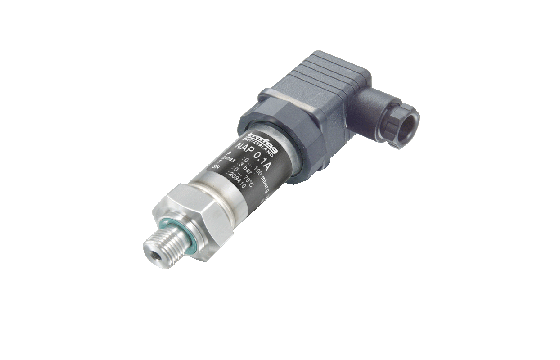

Product code | 8842/8843 |
---|---|
Name | NAP |
Designation | Pressure Transmitter |
Product category | Pressure transmitters |
Measuring range | 0 ... 0.1 a 0... 1000 bar |
Measuring principle | Piezoresistive |
Applications | Food IndustryHVACHydraulicsMachine toolsProcess technologyShipbuildingWater treatment |
Approval / conformity | DNV-GL |
Output signal | 4 ... 20 mA 0 ... 10 VDC |
Electrical connections | Cable; DIN43650-A; Binder 723; MIL-C 26482 |
Pressure connections | G1/4" f; G1/4" m; G1/4" m (Manometer); G1/2" m; G1/2" m, frontal membrane; G1/2" m, flush membrane; G1/2" m (Manometer) |
Media temperature | 0°C ... +80°C (opt. -25 ... +100°C/-25 ... +150°C) |
Ambient temperature | 0°C ... +70°C (opt. -25 ... +85°C) |
