ISN/ISNT 471/472 Navistat

Back to overview
  • Shipbuilding Shipbuilding

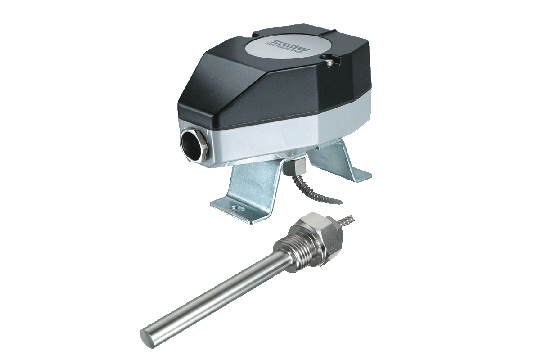

main product photo

Main features

  • Compact design
  • Rugged housing
  • High repeatability
  • Protection IP65
  • Any mounting position possible
About

Technical Data

More Information
Product code 471/472
Name ISN/ISNT
Designation Navistat
Product category

Thermostats
Measuring range +20°C ... +110°C to +40°C ... +300°C
Applications

Engine manufacturing
Railways
Shipbuilding
Repeatability ± 0.5 % FS typ.
Designation of application Thermostat for shipbuilding
Approval / conformity Marine EU RO MR Type Approval
Output signal Floating change-over contact
Ambient temperature Range +45°C ... +250°C: -30°C ... +70°C Range > + 250°C: -10°C ... +70°C

Downloads Go to file downloads

Datasheet:

Manual:

Flyer:

Certificates:

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Temperature range [°C] Sensor max. [°C] Description

ISNT15015

+20 ... +150

165

Mounted directly on protection tube
Sensor: Capillary tube with direct mounted sensor
Protection tube diameter: 10
Protection tube length: 150
Type Code: 471 2331 122 14 1416 0150

ISNT11065

+20 ... +110

115

Mounted directly on protection tube
Sensor: Capillary tube with direct mounted sensor
Protection tube diameter: 15
Protection tube length: 65
Type Code: 471 2323 342 14 1419 0065

ISNT15011

+20 ... +150

165

Mounted directly on protection tube
Sensor: Capillary tube with direct mounted sensor
Protection tube diameter: 12
Protection tube length: 110
Type Code: 471 2331 132 14 1417 0110

ISNT15065

+20 ... +150

165

Mounted directly on protection tube
Sensor: Capillary tube with direct mounted sensor
Protection tube diameter: 15
Protection tube length: 65
Type Code: 471 2331 142 14 1419 0065

ISNT11015

+20 ... +110

115

Mounted directly on protection tube
Sensor: Capillary tube with direct mounted sensor
Protection tube diameter: 10
Protection tube length: 150
Type Code: 471 2323 322 14 1416 0150

ISN15015

+20 ... +150

165

Capillary tube length 3m
Sensor: Capillary tube with remote sensor
Protection tube diameter: 10
Protection tube length: 150
Type Code: 471 2331 122 27 8316 0150 90

ISN15011

+20 ... +150

165

Capillary tube length 3m
Sensor: Capillary tube with remote sensor
Protection tube diameter: 12
Protection tube length: 110
Type Code: 471 2331 132 27 8317 0110 90

ISN15065

+20 ... +150

165

Capillary tube length 3m
Sensor: Capillary tube with remote sensor
Protection tube diameter: 15
Protection tube length: 65
Type Code: 471 2331 142 27 8319 0065 90

ISN11065

+20 ... +110

115

Capillary tube length 3m
Sensor: Capillary tube with remote sensor
Protection tube diameter: 15
Protection tube length: 65
Type Code: 471 2323 342 27 8319 0065 90

ISN11015

+20 ... +110

115

Capillary tube length 3m
Sensor: Capillary tube with remote sensor
Protection tube diameter: 10
Protection tube length: 150
Type Code: 471 2323 322 27 8316 0150 90

ISN11011

+20 ... +110

115

Capillary tube length 3m
Sensor: Capillary tube with remote sensor
Protection tube diameter: 12
Protection tube length: 110
Type Code: 471 2323 332 27 8317 0110 90

ISNT11011

+20 ... +110

115

Mounted directly on protection tube
Sensor: Capillary tube with direct mounted sensor
Protection tube diameter: 12
Protection tube length: 110
Type Code: 471 2323 332 14 1417 0110

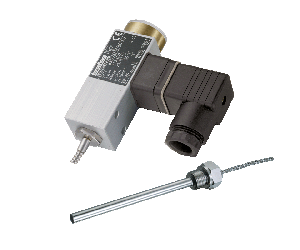

Related products
