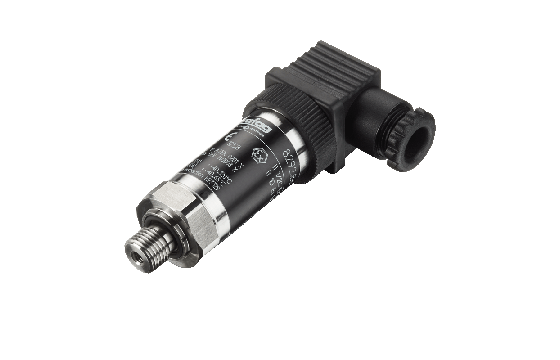

EXNT 8292 Ex Pressure Transmitter

Back to overview

Ex zones
Hydrogen
Shipbuilding

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Main features

Pressure ranges from 0.4 to 2500 bar
ATEX, IECEx, UKEX certified
II 1G Ex ia IIC T4/T6 Ga
II 1D Ex ia IIIC T₂₀₀160°C Da
I M1 Ex ia I Ma
II 1/2G Ex ia IIC T4/T6 Ga/Gb
Optional: hydrogen-compatible sensor
EC79/2009 certified by the KBA Kraftfahrt-Bundesamt

About

The EX pressure transmitter EXNT is based on Trafag’s own thin-film-on-steel sensor technology with excellent long-term stability and offers reliable and accurate pressure measurement over a wide temperature range. The intrinsic safety design is certified for applications in Ex-Zones 0, 1, 2 (gas), 20, 21, 22 (dust) and mining.

Technical Data

More Information
Product code	8292
Name	EXNT
Designation	Ex Pressure Transmitter
Product category	Pressure transmitters
Measuring range	0 ... 0.4 to 0 ... 100 bar 0 ... 5 to 0 ... 1000 psi
Measuring principle	Thin-film-on-steel
Approval / conformity	DNV, KRS, RMRS ATEX, IECE, UKEX, according to the norm EN/IEC 60079-0 / EN 60079-11 / EN 60079-26 / EN 50303 PESO Petroleum & Explosives Safety Organization India
Accuracy @ 25°C typ.	± 0.5 % FS typ.± 0.3 % FS typ.
Output signal	4 ... 20 mA
Electrical connections	EN175301-803-A; M12x1; MIL-C 26482; Binder 723; Cable
Pressure connections	G1/4 m; G1/4 m (Manometer) EN 837; G1/4 f; G1/2 m; G1/2 m (Manometer) EN 837; R1/4 m; 1/4NPT m; M18x1.5 m
Media temperature	Max. -40°C ... +120°C (see electrical connection)
Ambient temperature	Max. -40°C ... +120°C (see electrical connection)
Output signal	4 … 20 mA
Special features	Hydrogen compatible

Downloads Go to file downloads

Datasheet:

H72329ad CN 8292 EXNT Ex Pressure Transmitter
cn
pdf 884.8KB
H72329ad DE 8292 EXNT Ex Pressure Transmitter
de
pdf 805.7KB
H72329ad EN 8292 EXNT Ex Pressure Transmitter
en
pdf 804.7KB
H72329ad ES 8292 EXNT Ex Pressure Transmitter
es
pdf 805.8KB
H72329ad FR 8292 EXNT Ex Pressure Transmitter
fr
pdf 806KB
H72329ad IT 8292 EXNT Ex Pressure Transmitter
it
pdf 805.3KB
H72329ad JP 8292 EXNT Ex Pressure Transmitter
jp
pdf 898.7KB
H72329ad PL 8292 EXNT Ex Pressure Transmitter
pl
pdf 806.6KB
H72329ad PT 8292 EXNT Ex Pressure Transmitter
pt
pdf 806.1KB

Manual:

H73329k Instructions 8292 EXNT Intrinsically-safe-pressure-transmitter
en
pdf 300.2KB

Certificates:

EC79 Hydrogen NHT 8250 EHI 8280 NAH 8253 EXNT 8292
en
pdf 115KB
CE UKCA Declaration of conformity 8292
en
pdf 68.7KB

STEP files and software:

8292.XX.XX.17.05
en
STEP 1.5MB

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product

Grouped product items

Product Name	Measuring range [bar]	Over pressure max. [bar]

0 ... 0.4

1.2

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 10 ... 30

Type Code: 8292 69 2617 05 0000 0000 19 46 61 92

0 ... 0.6

1.5

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 10 ... 30

Type Code: 8292 70 2617 05 0000 0000 19 46 61 92

0 ... 1

2

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 10 ... 30

Type Code: 8292 71 2617 05 0000 0000 19 46 61 92

0 ... 2.5

5

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 10 ... 30

Type Code: 8292 75 2517 05 0000 0000 19 46 61 92

0 ... 4

8

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 10 ... 30

Type Code: 8292 76 2517 05 0000 0000 19 46 61 92

0 ... 6

12

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 10 ... 30

Type Code: 8292 77 2517 05 0000 0000 19 46 61 92

0 ... 10

20

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 10 ... 30

Type Code: 8292 78 2517 05 0000 0000 19 46 61 92

0 ... 16

32

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 10 ... 30

Type Code: 8292 79 2517 05 0000 0000 19 46 61 92

0 ... 25

50

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 10 ... 30

Type Code: 8292 80 2517 05 0000 0000 19 46 61 92

0 ... 40

80

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 10 ... 30

Type Code: 8292 81 2517 05 0000 0000 19 46 61 92

0 ... 100

200

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 10 ... 30

Type Code: 8292 83 2517 05 0000 0000 19 46 61 92

0 ... 250

500

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 10 ... 30

Type Code: 8292 74 2517 05 0000 0000 19 46 61 92
