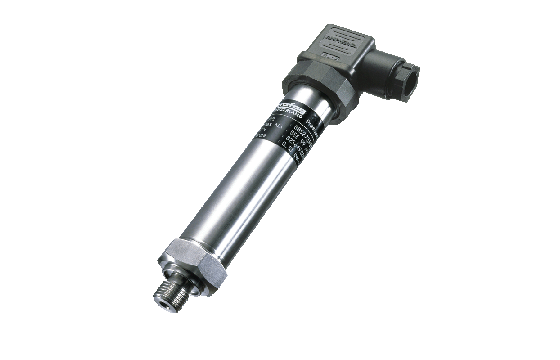

Main features
- Ex SEV 11 ATEX 0145 X
- Pressure ranges starting from 100 mbar
- Versions with frontal or flush diaphragm
- Media temperature up to 150°C
- Optional: lightning protection (IEC 61000-4-5), 10kA (8/20 µs)
About
Technical Data
| Product code | 8852/8853 |
|---|---|
| Name | EXNA |
| Designation | Ex Pressure Transmitter |
| Product category | Pressure transmitters |
| Measuring range | 0 ... 0.1 to 0 ... 1000 bar |
| Measuring principle | Piezoresistive |
| Approval / conformity | DNV-GL |
| Output signal | 4 ... 20 mA |
| Electrical connections | EN175301-803-A (DIN43650-A); M12x1; MIL-C 26482; Binder 723; Cable |
| Pressure connections | G1/4" f; G1/4" m; G1/4" m (Manometer); G1/2" m; G1/2" m, frontal membrane; G1/2" m, flush membrane; G1/2" m (Manometer) |
| Media temperature | T3: -25°C ... +150°C T4: -25°C ... +100°C T6: -25°C ... +55°C |
| Ambient temperature | T3/T4: -25°C ... +85°C T6: -25°C ... +55°C |
| Output signal | 4 … 20 mA |
Downloads Go to file downloads
Datasheet:
-
H72227l CN 8852 8853 EXNA Ex Pressure Transmittercn
pdf 843.8KB
-
H72227l DE 8852 8853 EXNA Ex Pressure Transmitterde
pdf 788.9KB
-
H72227l EN 8852 8853 EXNA Ex Pressure Transmitteren
pdf 773.7KB
-
H72227l ES 8852 8853 EXNA Ex Pressure Transmitteres
pdf 788.6KB
-
H72227l FR 8852 8853 EXNA Ex Pressure Transmitterfr
pdf 788.9KB
-
H72227l IT 8852 8853 EXNA Ex Pressure Transmitterit
pdf 788.1KB
-
H72227l JP 8852 8853 EXNA Ex Pressure Transmitterjp
pdf 857.8KB
-
H72227l PL 8852 8853 EXNA Ex Pressure Transmitterpl
pdf 789.9KB
-
H72227l PT 8852 8853 EXNA Ex Pressure Transmitterpt
pdf 789KB
Manual:
Certificates:
-
CE UKCA Declaration of conformity 8852 8853 8854 8858 8859en
pdf 74.1KB
-
SEV 11 ATEX 0145 X en Issue 3 8852-58en
pdf 579.5KB
-
DNVGL 8838 8842 8843 8852 8853 8858en
pdf 91.3KB
