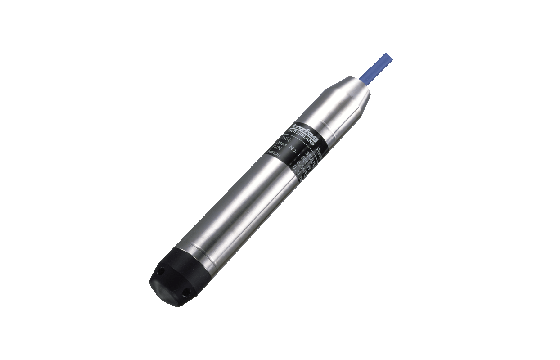

EXNAL 8858 Ex Submersible Pressure Transmitter

Back to overview
  • Ex zones Ex zones

Main features

  • Pressure ranges starting from 100 mbar
  • Cable PUR or FEP
  • Optional: chemical resistant material, in titanium
  • Explosion-proof Ex ia IIC T3 ... T6
  • Optional: lightning protection (IEC 61000-4-5), 10kA (8/20 µs)

Technical Data

More Information
Product code 8858
Designation Ex Submersible Pressure Transmitter
Product category

Pressure transmitters

Measuring range 0 ... 0.1 to 0 ... 25 bar
Measuring principle Piezoresistive
Approval / conformity DNV-GL
Output signal 4 ... 20 mA
Electrical connections Cable PUR or FEP
Pressure connections Open; Closed; G1/4" m
Media temperature T4/T6: -5°C ... +50°C
Ambient temperature T4/T6: -5°C ... +50°C

Downloads Go to file downloads
