Main features
- Suitable for thick and viscous media
- Different materials for optimum media compatibility
- Configurable measuring ranges
- Optional: Enhanced lightning protection
About

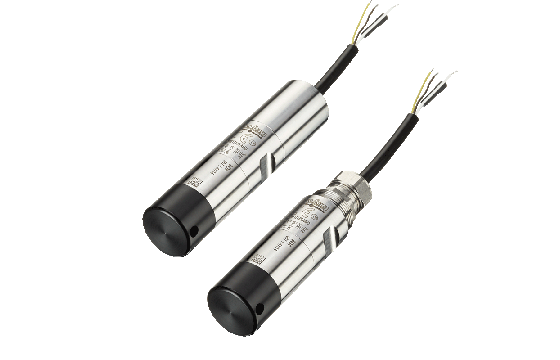

The new Submersible Pressure Transmitter ECL is based on Trafag’s own thick-film-on-ceramic technology. The optionally configurable pressure ranges can be adapted individually via interface tool and Smartphone App.
Technical Data
Product code | 8439 |
---|---|
Name | ECL |
Designation | Submersible Pressure Transmitter |
Product category | Pressure transmitters |
Measuring range | 0 ... 0.1 a 0 ... 6.0 bar 0 ... 1.5 a 0 ... 100 psi |
Measuring principle | Thick-film-on-ceramic |
Applications | Process technologySeawaterShipbuildingWater treatment (wastewater, grey-water, drinking water) |
Approval / conformity | DNV-GL EU RO Mutual Recognition Type Approval Certificate |
Accuracy @ 25°C typ. | ± 0.3 % FS typ. Range 0 ... 0.1 to 0 ... 0.2 bar: ± 0.5 % FS typ. |
Output signal | 4 ... 20 mA |
Electrical connections | Cable PUR/PE |
Media temperature | max. -25°C ... +70°C |
Ambient temperature | max. -25°C ... +70°C |
Downloads Go to file downloads
Datasheet:
-
H72336m CN 8439 ECL Submersible Pressure Transmittercn
pdf 663.4KB
-
H72336m DE 8439 ECL Submersible Pressure Transmitterde
pdf 598KB
-
H72336m EN 8439 ECL Submersible Pressure Transmitteren
pdf 596.7KB
-
H72336m ES 8439 ECL Submersible Pressure Transmitteres
pdf 599.2KB
-
H72336m FR 8439 ECL Submersible Pressure Transmitterfr
pdf 599.2KB
-
H72336m IT 8439 ECL Submersible Pressure Transmitterit
pdf 598.3KB
-
H72336m JP 8439 ECL Submersible Pressure Transmitterjp
pdf 680.4KB
-
H72336m PL 8439 ECL Submersible Pressure Transmitterpl
pdf 600.2KB
-
H72336m PT 8439 ECL Submersible Pressure Transmitterpt
pdf 599.7KB
Manual:
Flyer:
-
H70690m CN 8439 ECL Submersible Pressure Transmittercn
pdf 5.1MB
-
H70690m DE 8439 ECL Submersible Pressure Transmitterde
pdf 5.1MB
-
H70690m EN 8439 ECL Submersible Pressure Transmitteren
pdf 5.1MB
-
H70690m ES 8439 ECL Submersible Pressure Transmitteres
pdf 5.1MB
-
H70690m FR 8439 ECL Submersible Pressure Transmitterfr
pdf 5.1MB
-
H70690m IT 8439 ECL Submersible Pressure Transmitterit
pdf 5.1MB
-
H70690m JP 8439 ECL Submersible Pressure Transmitterjp
pdf 5.1MB
-
H70690m PL 8439 ECL Submersible Pressure Transmitterpl
pdf 5.1MB
-
H70690m PT 8439 ECL Submersible Pressure Transmitterpt
pdf 5.1MB
Certificates:
-
CE EU declaration of conformity Pressure Transmitter ECL 8439en
pdf 55.7KB
-
DNVGL MR ECL 8439en
pdf 341.9KB
