DTP 8180 Temperature switch

Back to overview

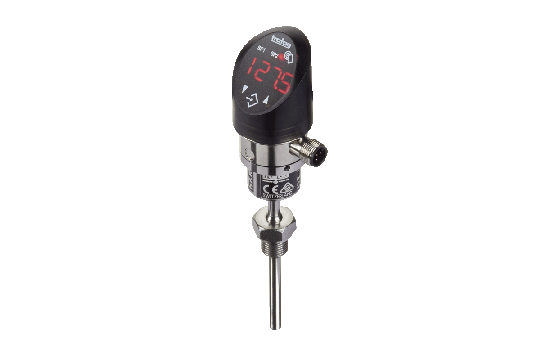

main product photo

Main features

  • Parametrisation also via NFC-smartphone App (Android)
  • Display and electrical connection are independently rotatable 335°/343°
  • Analogue output switchable mA or V
  • Integrated data logger
  • Temperature measuring range adjustable, 50 … 100 % of the nominal range
About

Technical Data

More Information
Product code 8180
Name DTP
Designation Temperature switch
Product category

Temperature transmitter
Measuring range -50°C ... +150°C / -58°F ... 302°F ajustable 50 ... 100 % FS
Measuring principle PT 1000, DIN EN 60751 class A, 2 conductors
Accuracy @ 25°C typ. ± 0.5 % FS typ.+ temperature sensor error
Output signal 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, switchable mA or V
Electrical connections Male electrical connector M12x1, 5-pole Male electrical connector M12x1, 4-pole
Pressure connections G1/8" m; G1/4" m; G1/2" m; 1/4" NPT m; 1/2" NPT m; Tri-Clamp DIN32676; Sanitary fitting DIN11851
Ambient temperature -25°C ... +85°C

Downloads Go to file downloads

Datasheet:

Manual:

Flyer:

Certificates:

Did you not find the product information you were looking for? Please contact our sales team.

Related products

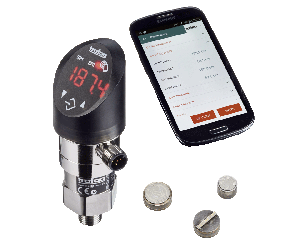

  1. DPS 8381
    DPS 8381
  2. DLF 8980
    DLF 8980

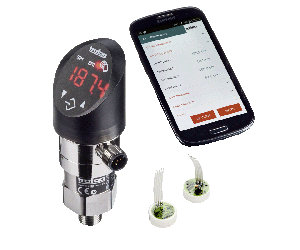

  3. DPC 8380
