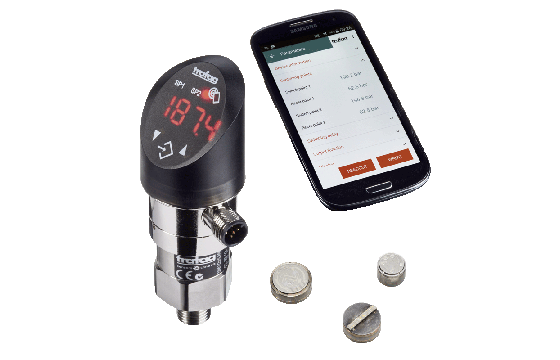

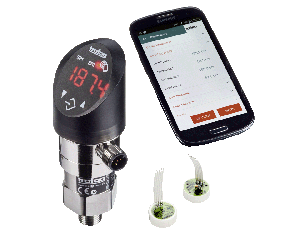

DPS 8381 Display Pressure Switch

Back to overview

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Main features

Parametrisation also via NFC-smartphone App (Android)
Display and electrical connection are independently rotatable 335°/343°
Analogue output switchable mA or V
Integrated data logger
Measuring range adjustable

About

The DPS 8381 is the ideal combination of pressure switch and transmitter with a pressure display. The parameters are set on the device or in a timesaving way via an NFC - smartphone App. The settings in combination with a comprehensive set of options make the DPS 8381 suitable for a wide range of demanding applications.

Technical Data

More Information
Product code	8381
Name	DPS
Designation	Display Pressure Switch
Product category	Pressure transmitters Electronic pressure switches
Measuring range	0 ... 2.5 to 0 ... 600 bar 0 ... 30 to 0 ... 7500 psi adjustable
Measuring principle	Thin-film-on-steel
Applications	Hydraulics Industrial applications Machine tools Process technology
Accuracy @ 25°C typ.	± 0.5 % FS typ.
Output signal	4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, switchable mA or V
Electrical connections	Male electrical connector M12x1, 5-pole Male electrical connector M12x1, 4-pole
Pressure connections	G1/4" f; G1/4" m Seal; G1/4" m with integrated damping; G1/4" m (Manometer) EN 837; G1/2" m (Manometer) EN 837; 1/4"NPT m; 1/2"NPT m; R1/4" m, DIN3858; M14x1.5 m, DIN6149-2; 7/16"-20UNF m, DIN3866; 7/16" -20UNF m, SAE4 (J1926); 7/16"-20UNF f, SAE J512, va
Media temperature	-25°C ... +85°C
Ambient temperature	-25°C ... +85°C

Downloads Go to file downloads

Datasheet:

H72321q CN 8381 DPS Display Pressure Switch
cn
pdf 707.5KB
H72321q DE 8381 DPS Display Pressure Switch
de
pdf 623KB
H72321q EN 8381 DPS Display Pressure Switch
en
pdf 621.5KB
H72321q ES 8381 DPS Display Pressure Switch
es
pdf 622.8KB
H72321q FR 8381 DPS Display Pressure Switch
fr
pdf 623.1KB
H72321q IT 8381 DPS Display Pressure Switch
it
pdf 622.8KB
H72321q JP 8381 DPS Display Pressure Switch
jp
pdf 718.5KB
H72321q PL 8381 DPS Display Pressure Switch
pl
pdf 624.1KB
H72321q PT 8381 DPS Display Pressure Switch
pt
pdf 623.6KB

Manual:

H73320o Instructions 8380 8381 DPC DPS Pressure Switch with Display
en
pdf 473.7KB

Flyer:

H70694q CN 8381 DPS Display Pressure Switch
cn
pdf 3.6MB
H70694q DE 8381 DPS Display Pressure Switch
de
pdf 3.6MB
H70694q EN 8381 DPS Display Pressure Switch
en
pdf 3.6MB
H70694q ES 8381 DPS Display Pressure Switch
es
pdf 3.6MB
H70694q FR 8381 DPS Display Pressure Switch
fr
pdf 3.6MB
H70694q IT 8381 DPS Display Pressure Switch
it
pdf 3.6MB
H70694q JP 8381 DPS Display Pressure Switch
jp
pdf 3.6MB
H70694q PL 8381 DPS Display Pressure Switch
pl
pdf 3.6MB
H70694q PT 8381 DPS Display Pressure Switch
pt
pdf 3.6MB

Certificates:

CE UKCA Declaration of conformity Pressure Transmitter
en
pdf 73.9KB

STEP files and software:

8381.XX.XX.10.32
en
STEP 743.5KB
8381.XX.XX.10.35
en
STEP 759.1KB
8381.XX.XX.11.32
en
STEP 761KB
8381.XX.XX.11.35
en
STEP 776.5KB
8381.XX.XX.15.32
en
STEP 789.7KB
8381.XX.XX.15.35
en
STEP 805.3KB
8381.XX.XX.17.32
en
STEP 786.3KB
8381.XX.XX.17.35
en
STEP 801.9KB
8381.XX.XX.18.32
en
STEP 746KB
8381.XX.XX.18.35
en
STEP 761.5KB
8381.XX.XX.19.32
en
STEP 747.7KB
8381.XX.XX.19.35
en
STEP 763.4KB
8381.XX.XX.24.32
en
STEP 802.7KB
8381.XX.XX.24.35
en
STEP 818.3KB
8381.XX.XX.30.32
en
STEP 747.4KB
8381.XX.XX.30.35
en
STEP 763KB
8381.XX.XX.31.32
en
STEP 1.4MB
8381.XX.XX.31.35
en
STEP 792KB
8381.XX.XX.42.32
en
STEP 764.7KB
8381.XX.XX.42.35
en
STEP 780.3KB
8381.XX.XX.51.32
en
STEP 747.2KB
8381.XX.XX.51.35
en
STEP 762.8KB

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product

Grouped product items

Product Name	Measuring range [bar]	Over pressure max. [bar]	Output signal

DPS250.0PAP1

0 ... 250

750

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 74 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS160.0PAP1

0 ... 160

480

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 85 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS400.0PAP1

0 ... 400

1000

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 84 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS60.0PAP1

0 ... 60

180

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 82 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS100.0PAP1

0 ... 100

300

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 83 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS600.0PAP1

0 ... 600

1500

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 86 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS10.0PAP1

0 ... 10

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 78 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS40.0PAP1

0 ... 40

120

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 81 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS25.0PAP1

0 ... 25

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 80 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS16.0PAP1

0 ... 16

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 79 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS2.5PAP1

0 ... 2.5

7.5

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 75 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS4.0PAP1

0 ... 4

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 76 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPS6.0PAP1

0 ... 6

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8381 77 2517 35 0000 0000 PA P1 44 61 ZS Z1 Z2
