DPC 8380 Display Pressure Switch

Back to overview

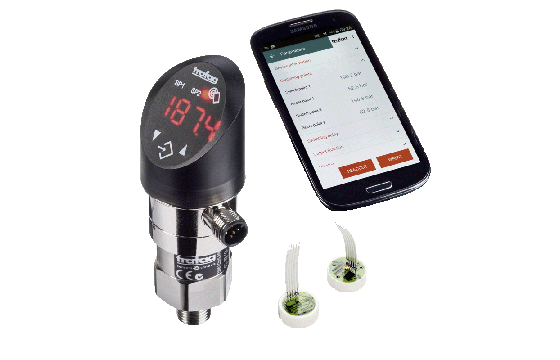

main product photo

Main features

  • Parametrisation also via NFC-smartphone App (Android)
  • Display and electrical connection are independently rotatable 335°/343°
  • Analogue output switchable mA or V
  • Integrated data logger
  • Measuring range adjustable
About
The DPC 8380 is the ideal combination of pressure switch and transmitter with pressure display. The parameters are set on the device or in a timesaving way via an NFC - smartphone App. The settings in combination with a comprehensive set of options make the DPC 8380 suitable for a wide range of industrial applications.

Technical Data

More Information
Product code 8380
Name DPC
Designation Display Pressure Switch
Product category

Pressure transmitters
Electronic pressure switches
Measuring range 0 ... 0.2 to 0 ... 100 bar 0 ... 2.5 to 0 ... 1500 psi adjustable
Measuring principle Thick-film-on-ceramic
Accuracy @ 25°C typ. ± 0.5 % FS typ. ± 0.3 % FS typ.
Output signal 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, switchable mA or V
Electrical connections Male electrical connector M12x1, 5-pole Male electrical connector M12x1, 4-pole
Pressure connections G1/4" f; G1/4" m; G1/2" m, DIN3852-E; 1/4"NPT m; R1/4" m, DIN3858; 7/16"-20UNF m, DIN3866; 7/16"-20UNF m, SAE4 (J1926); 7/16"-20UNF f, SAE J512, valve opener; 9/16"-18UNF m, SAE6 (J1926); G3/4" frontal membrane
Media temperature -25°C ... +85°C
Ambient temperature max. -25°C ... +85°C (UL-rated ambient temperature: -20°C ... +80°C) details see section Electrical Connection
Measuring range

≤ 1 bar
≤ 100 bar
< 15 psi
< 1500 psi

Downloads Go to file downloads

Datasheet:

Manual:

Flyer:

Certificates:

STEP files and software:

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Measuring range [bar] Over pressure max. [bar] Output signal

DPC10.0PAP1

0 ... 10

20

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 78 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC25.0PAP1

0 ... 25

50

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 80 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC0.2PAP1

0 ... 0.2

1.2

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 68 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC0.4PAP1

0 ... 0.4

1.2

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 69 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC0.6PAP1

0 ... 0.6

1.2

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 70 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC1.0PAP1

0 ... 1

2

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 71 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC1.6PAP1

0 ... 1.6

3.2

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 73 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC100.0PAP1

0 ... 100

200

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 83 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC16.0PAP1

0 ... 16

32

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 79 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC2.5PAP1

0 ... 2.5

5

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 75 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC4.0PAP1

0 ... 4

8

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 76 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC40.0PAP1

0 ... 40

80

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 81 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC6.0PAP1

0 ... 6

12

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 77 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2

DPC60.0PAP1

0 ... 60

120

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 15 ... 30
Pressure connection: G1/4" male
Type Code: 8380 82 5717 35 0000 0000 PA P1 44 61 ZS Z1 Z2
