Main features
- All stainless steel measuring system
- Socket-case, direct welded
- Threaded / Flanged connection
- High resistance to over pressure
About

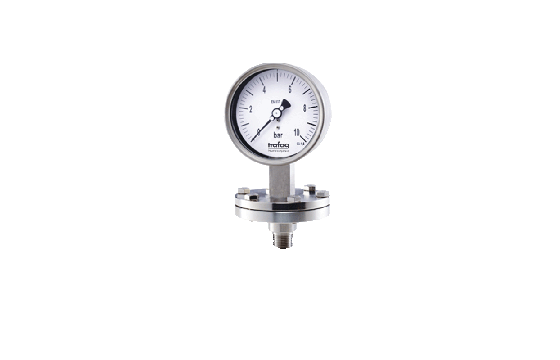

The TMP604 All Stainless Steel Pressure Gauge with diaphragm sensor allows the monitoring of low pressures down to 6 mbar with one or two micro switches.
Technical Data
| Product code | 604 |
|---|---|
| Name | TMP |
| Designation | All stainless steel pressure gauge |
| Measuring range | 0 ... 10 to 0 ... 250 mbar 0 ... 0,4 to 0 ... 40 bar |
| Measuring principle | Diaphragm |
| Applications | Chemical &Corrosive environmentsGas applicationsLiquid and gaseous mediaMachine toolsOil &petrochemical |
| Approval / conformity | EN 837-3, ATEX 2014/34/UE |
Downloads Go to file downloads
Datasheet:
Certificates:
