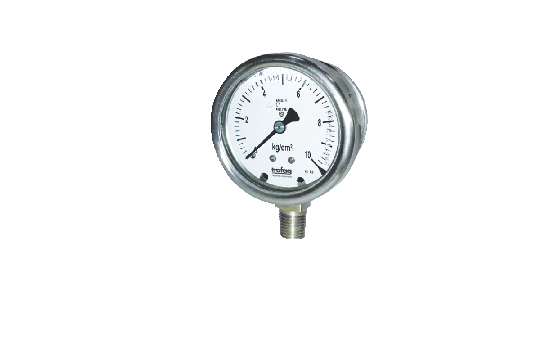

TMP 203 High safety pressure gauge

Back to overview

Main features

  • Solid front with full blow back
  • All stainless steel measuring system
  • External zero adjustment
  • Dry / liquid filled
The TMP203 High Safety Pressure Gauge in miniature design DN63 is ideally suited where space is tight.

Technical Data

More Information
Product code 203
Name TMP
Designation High safety pressure gauge
Measuring range -1 ... 0 to 0 ... 1000 bar
Measuring principle Bourdon Tube (≤100 bar: C - type, >100 bar: Helical)
Approval / conformity EN 837-1, ATEX 2014/34/UE

Downloads Go to file downloads

Did you not find the product information you were looking for? Please contact our sales team.
