Main features
- Measuring resolution 5, 10, 20 mm
- Analogue output 4 ... 20 mA, 0 ... 5 VDC, 0 ... 10 VDC
- Optional : Temperature sensor PT1000
- Protection IP 65
About
The principle of operation is of potentiometric type, based on the gradual shutdown of a chain of resistors and Reed contacts, placed inside the guiding rod, by a magnetic float. An analogue output signal is provided with a measuring resolution of 5, 10 or 20 mm.
Technical Data
Product code | TFC |
---|---|
Name | TFC |

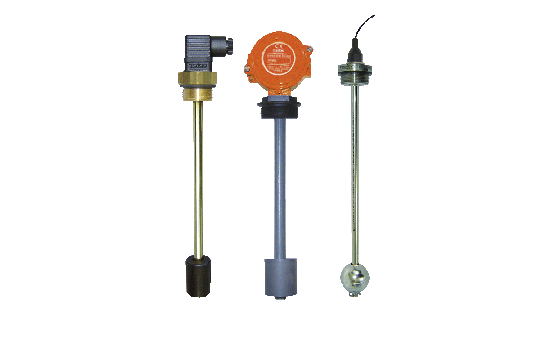

Designation | Float Level Sensor |
Measuring range | max. 2000 mm |
Measuring principle | Float activated Reed contacts |
Downloads Go to file downloads
Datasheet:
-
H20040e EN TFC Float Level Sensoren
pdf 578.8KB
Certificates:
Did you not find the product information you were looking for? Please contact our sales team.
