Main features
- Compact design
- Rugged housing
- Protection IP65
- Any mounting position possible
About

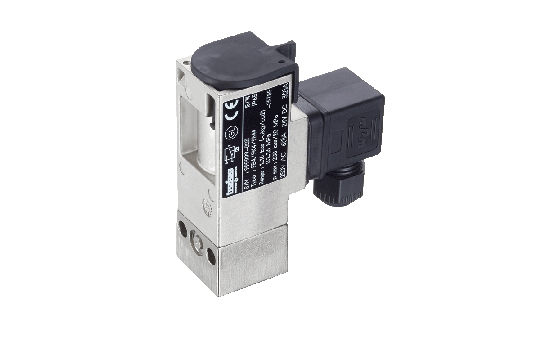

The 9M4 of the Picostat series is based on our long lasting experience in the shipbuilding and railway sector. This further improved version offers high vibration resistance within a compact body and is suitable for a wide temperature range.
Technical Data
Product code | 9M4 |
---|---|
Name | PST4M |
Designation | Picostat Pressure Switch |
Product category | Mechanical pressure switches |
Measuring range | 1 ... 10 to 10 ... 100 bar 14 ... 150 to 150 ... 1500 psi |
Measuring principle | Membrane |
Applications | Engine manufacturingHydraulicsMachine toolsRailwaysShipbuilding |
Approval / conformity | ABS, BV, CCS, DNV-GL, KRS, LRS, RINA, EN60730-1/ EN60730-2-6: Type 2.B.H |
Repeatability | ± 2.0 % FS typ. |
Output signal | 1 Floating change-over contact (SPDT) |
Electrical connections | EN175301-803-A (DIN43650-A) |
Pressure connections | G1/8" f, G1/4" f, M10x1.0 f |
Media temperature | 0°C ... +80°C |
Ambient temperature | 0°C ... +80°C |
Downloads Go to file downloads
Datasheet:
-
H72368h CN 9M4 PST4M Picostat Pressure Switchcn
pdf 692.1KB
-
H72368h DE 9M4 PST4M Picostat Pressure Switchde
pdf 617.4KB
-
H72368h EN 9M4 PST4M Picostat Pressure Switchen
pdf 614.8KB
-
H72368h ES 9M4 PST4M Picostat Pressure Switches
pdf 615.6KB
-
H72368h FR 9M4 PST4M Picostat Pressure Switchfr
pdf 615.8KB
-
H72368h IT 9M4 PST4M Picostat Pressure Switchit
pdf 615KB
-
H72368h JP 9M4 PST4M Picostat Pressure Switchjp
pdf 688KB
-
H72368h PL 9M4 PST4M Picostat Pressure Switchpl
pdf 616.6KB
-
H72368h PT 9M4 PST4M Picostat Pressure Switchpt
pdf 616.3KB
Manual:
-
H73367l 9B4 9K4 9M4 Picostat A5en
pdf 408.9KB
Flyer:
-
H70668h CN 9M4 PST4M Picostat Pressure Switchcn
pdf 3.9MB
-
H70668h DE 9M4 PST4M Picostat Pressure Switchde
pdf 3.9MB
-
H70668h EN 9M4 PST4M Picostat Pressure Switchen
pdf 3.9MB
-
H70668h ES 9M4 PST4M Picostat Pressure Switches
pdf 3.9MB
-
H70668h FR 9M4 PST4M Picostat Pressure Switchfr
pdf 3.9MB
-
H70668h IT 9M4 PST4M Picostat Pressure Switchit
pdf 3.9MB
-
H70668h JP 9M4 PST4M Picostat Pressure Switchjp
pdf 3.9MB
-
H70668h PL 9M4 PST4M Picostat Pressure Switchpl
pdf 3.9MB
-
H70668h PT 9M4 PST4M Picostat Pressure Switchpt
pdf 3.9MB
Certificates:
-
CE UKCA Declaration of conformity 9B0 9K0 9M0 9D0 9B4 9K4 9M4en
pdf 1.8MB
-
ABS Pressure Switch 9K4 9M4 CHen
pdf 1.1MB
-
ABS Pressure Switch 9K4 9M4 CZen
pdf 1.2MB
-
BV Picostat PST4K 4Men
pdf 414.5KB
-
CCS Picostat PST4M 9M4en
pdf 261.4KB
-
DNVGL Picostat 9M4 9K4en
pdf 214.3KB
-
KRS Picostat 9K4 9M4en
pdf 391.5KB
-
RINA Picostat 9X4 PST4Xen
pdf 3.6MB
