NPN 8264 Picotrans

Back to overview
  • Shipbuilding Shipbuilding

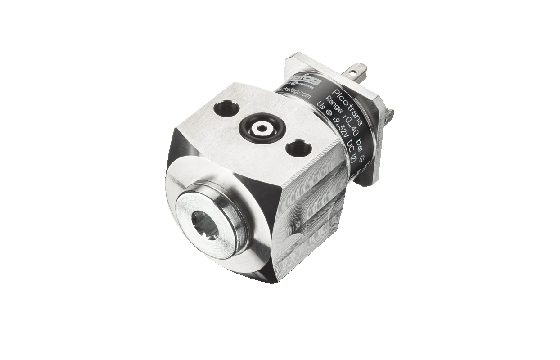

main product photo

Main features

  • Compact design
  • Flange connection (PICO family)
  • High vibration resistance
  • Good temperature resistance
  • Completely welded steel sensor system without additional seals
About
The NPN pressure transmitter offers reliable and accurate pressure measurement over a wide temperature range. Its excellent long-term stability is based on the leading thin-film-on-steel sensor technology from Trafag. Its robust design and the block design with its optional flange connection makes the NPN the perfect choice for demanding applications such as marine and rail industries.

Technical Data

More Information
Product code 8264
Name NPN
Designation Picotrans
Product category

Pressure transmitters
Measuring range 0 ... 2.5 to 0 ... 250 bar
Measuring principle Thin-film-on-steel
Applications

Engine manufacturing
Hydraulics
Machine tools
Railways
Shipbuilding
Approval / conformity ABS, BV, CCS, DNV-GL, KRS, LRS, NKK, RINA, RMRS
Accuracy @ 25°C typ. ± 0.5 % FS typ. ± 0.3 % FS typ.
Output signal 4 ... 20 mA
Electrical connections EN175301-803-A (DIN43650-A); Cable
Pressure connections G1/4" f; M10x1 f; G1/8" f
Media temperature -40°C ... +100°C
Ambient temperature -40°C ... +100°C

Downloads Go to file downloads

Datasheet:

Manual:

Flyer:

Certificates:

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Measuring range [bar] Over pressure max. [bar] Output signal

NPN10.0AF4

0 ... 10

20

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 24 (9 ... 32)
Type Code: 8264 78 2510 04 0000 0000 19 41 46 74 V3

NPN16.0AF4

0 ... 16

32

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 24 (9 ... 32)
Type Code: 8264 79 2510 04 0000 0000 19 41 46 74 V3

NPN25.0AF4

0 ... 25

50

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 24 (9 ... 32)
Type Code: 8264 80 2510 04 0000 0000 19 41 46 74 V3

NPN4.0AF4

0 ... 4

10

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 24 (9 ... 32)
Type Code: 8264 76 2510 04 0000 0000 19 41 46 74 V3

NPN40.0AF4

0 ... 40

80

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 24 (9 ... 32)
Type Code: 8264 81 2510 04 0000 0000 19 41 46 74 V3

NPN6.0AF4

0 ... 6

15

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 24 (9 ... 32)
Type Code: 8264 77 2510 04 0000 0000 19 41 46 74 V3

NPN10.0A4

0 ... 10

20

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 24 (9 ... 32)
Type Code: 8264 78 2510 04 0000 0000 19 46 V3

NPN16.0A4

0 ... 16

32

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 24 (9 ... 32)
Type Code: 8264 79 2510 04 0000 0000 19 46 V3

NPN25.0A4

0 ... 25

50

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 24 (9 ... 32)
Type Code: 8264 80 2510 04 0000 0000 19 46 V3

NPN4.0A4

0 ... 4

10

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 24 (9 ... 32)
Type Code: 8264 76 2510 04 0000 0000 19 46 V3

NPN40.0A4

0 ... 40

80

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 24 (9 ... 32)
Type Code: 8264 81 2510 04 0000 0000 19 46 V3

NPN6.0A4

0 ... 6

15

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 24 (9 ... 32)
Type Code: 8264 77 2510 04 0000 0000 19 46 V3
