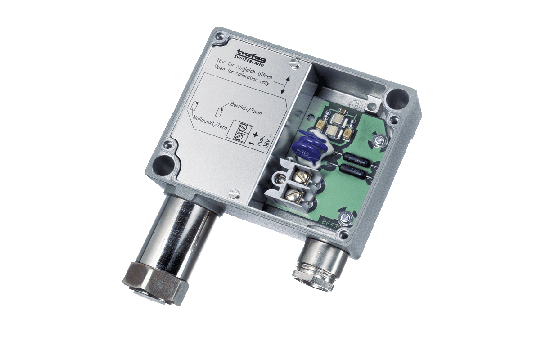

N 8202 Navitrag

Back to overview
  • Shipbuilding Shipbuilding

Main features

  • Excellent long-term stability
  • Protection IP 65
  • EMC protection, IEC 61000
  • Excellent resistance to pressure peaks and dynamic pressure changes
About

Technical Data

More Information
Product code 8202
Name N
Designation Navitrag
Product category

Pressure transmitters

Measuring range 0 ... 1.0 to 0 ... 600 bar
Measuring principle Thin-film-on-steel
Approval / conformity ABS, BV, DNV-GL, KRS, LRS
Accuracy @ 25°C typ. ± 0.5 % FS typ.
Output signal 4 ... 20 mA
Electrical connections Terminal screw 0.75 ... 2.5 mm²
Pressure connections G1/4" f; G1/2" m
Media temperature -25°C ... +125°C
Ambient temperature -25°C ... +85°C

Downloads Go to file downloads

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Measuring range [bar] Over pressure max. [bar] Output signal

N400.0

0 ... 400

800

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 84 2210

N1.0

0 ... 1

3

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 71 2210

N6.0

0 ... 6

15

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 77 2210

N10.0

0 ... 10

20

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 78 2210

N250.0

0 ... 250

500

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 74 2210

N2.5

0 ... 2.5

6

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 75 2210

N4.0

0 ... 4

10

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 76 2210

N16.0

0 ... 16

32

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 79 2210

N25.0

0 ... 25

80

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 80 2210

N40.0

0 ... 40

80

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 81 2210

N100.0

0 ... 100

200

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5
NLH @ 25°C (BSL) FS typ.: ± 0.3
Supply [VDC]: 12 ... 34
Type Code: 8202 83 2210
