Main features
- Short response time
- Protection IP54
- Electrical connection on terminal screw
About
Technical Data
Product code | 624/634 |
---|---|
Name | MSK |

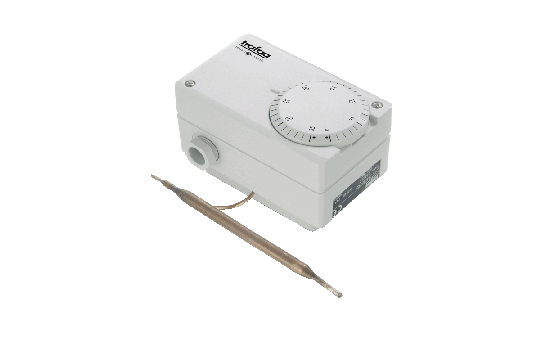

Designation | Duct Thermostat |
Product category | Thermostats |
Measuring range | -30°C ... +40°C to +20°C ... +110°C |
Applications | HVAC |
Repeatability | ± 0.5 % FS typ. |
Designation of application | Duct thermostat |
Approval / conformity | EN60730-1/ EN60730-2-9: Type 2.B.H |
Output signal | Floating change-over contact |
Ambient temperature | -30°C ... +70°C (important: Temperature at sensor may not exceed maximum sensor temperature) |
Downloads Go to file downloads
Datasheet:
-
H72177k CN 624 634 MSK Duct Thermostatcn
pdf 497.4KB
-
H72177k DE 624 634 MSK Duct Thermostatde
pdf 439KB
-
H72177k EN 624 634 MSK Duct Thermostaten
pdf 438.1KB
-
H72177k ES 624 634 MSK Duct Thermostates
pdf 438.6KB
-
H72177k FR 624 634 MSK Duct Thermostatfr
pdf 438.6KB
-
H72177k IT 624 634 MSK Duct Thermostatit
pdf 438.2KB
-
H72177k JP 624 634 MSK Duct Thermostatjp
pdf 503.3KB
-
H72177k PL 624 634 MSK Duct Thermostatpl
pdf 439.1KB
-
H72177k PT 624 634 MSK Duct Thermostatpt
pdf 439.8KB
Manual:
-
H73624e Ministat Instructionen
pdf 503.9KB
Flyer:
-
H70957k CN 624 634 MSK Duct Thermostatcn
pdf 3.6MB
-
H70957k DE 624 634 MSK Duct Thermostatde
pdf 3.6MB
-
H70957k EN 624 634 MSK Duct Thermostaten
pdf 3.6MB
-
H70957k ES 624 634 MSK Duct Thermostates
pdf 3.6MB
-
H70957k FR 624 634 MSK Duct Thermostatfr
pdf 3.6MB
-
H70957k IT 624 634 MSK Duct Thermostatit
pdf 3.6MB
-
H70957k JP 624 634 MSK Duct Thermostatjp
pdf 3.6MB
-
H70957k PL 624 634 MSK Duct Thermostatpl
pdf 3.6MB
-
H70957k PT 624 634 MSK Duct Thermostatpt
pdf 3.6MB
Certificates:
Did you not find the product information you were looking for? Please contact our sales team.
