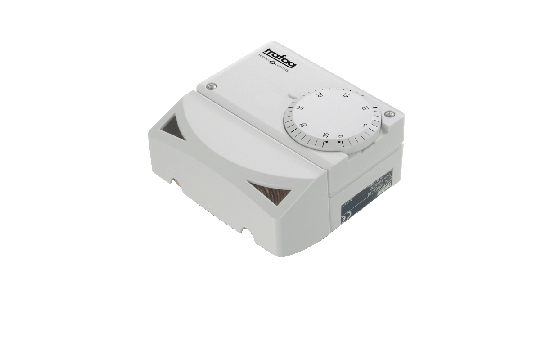

A/AS/ASE 645/650 Ambistat

Back to overview

Main features

  • Switching differential adjustable or fixed
  • Short response time
  • Protection IP54
  • Electrical connection on terminal screw
About

Technical Data

More Information
Product code 645/650
Name A/AS/ASE
Designation Ambistat
Product category

Thermostats

Measuring range -45°C ... +15°C to 0°C ... +60°C
Repeatability ± 0.5 % FS typ.
Designation of application Room thermostat
Approval / conformity EN60730-1/ EN60730-2-9: Type 2.B.H
Output signal Floating change-over contact
Ambient temperature See ordering information

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Temperature range [°C]

AS30

0 ... +30

Sensor: Sensor coil
Set point adjustment: Internal switchpoint adjustment
Sensor material: Copper
Type Code: 650 2503 402 19

AS33

-30 ... +30

Sensor: Sensor coil
Set point adjustment: Internal switchpoint adjustment
Sensor material: Copper
Type Code: 650 2502 402 19

A30

0 ... +30

Sensor: Sensor coil
Set point adjustment: External switchpoint adjustment
Sensor material: Copper
Type Code: 645 2503 402 19

A33

-30 ... +30

Sensor: Sensor coil
Set point adjustment: External switchpoint adjustment
Sensor material: Copper
Type Code: 645 2502 402 19

A40

+10 ... +40

Sensor: Sensor coil
Set point adjustment: External switchpoint adjustment
Sensor material: Copper
Type Code: 645 2504 402 19

A60

0 ... +60

Sensor: Sensor coil
Set point adjustment: External switchpoint adjustment
Sensor material: Copper
Type Code: 645 2512 402 19

AS40

+10 ... +40

Sensor: Sensor coil
Set point adjustment: Internal switchpoint adjustment
Sensor material: Copper
Type Code: 650 2504 402 19

AS60

0 ... +60

Sensor: Sensor coil
Set point adjustment: Internal switchpoint adjustment
Sensor material: Copper
Type Code: 650 2512 402 19

ASE40

+10 ... +40

Sensor: Sensor coil
Set point adjustment: Internal switchpoint adjustment
Sensor material: Copper
Type Code: 650 2404 402 19 0000 0000 00 00 00 01
