Main features
- Exact switching following isochore at all temperatures
- No contact bouncing
- Independent, galvanically separated circuits
- Output signal RS485 / MODBUS
- Long term drift free sensor output signal
About

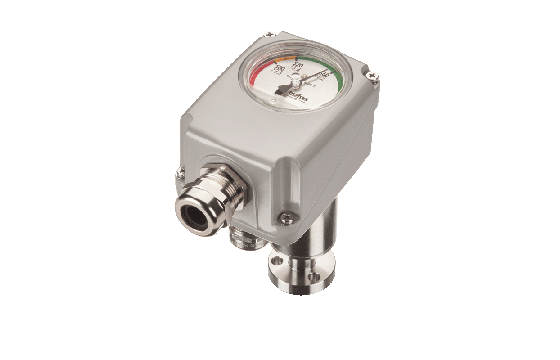

The hybrid gas density monitor combines self-acting monitoring and continuous density measurement of insulating gases in one device. The digital RS485/Modbus output allows the parameterisation of gas density, gas pressure and gas temperature output data. Trend analysis helps to detect possible leakages sooner, provides data for preventive maintenance measures and therefore facilitates compliance with greenhouse gas regulations. This precise and maintenance-free hybrid density monitor is reliable in operation over decades for indoor and outdoor applications.
Technical Data
| Product code | 879x |
|---|---|
| Designation | Hybrid Gas Density Monitor RS485/MODBUS |
| Measuring principle | Mechanical monitoring: Principle: Reference gas measurement Electronic monitoring: Principle: Oscillating quartz measurement |
| Designation of application | Gas Density Monitor for SF6 and other gases with output signal for continuous monitoring |
| Output signal | RS485 / MODBUS |
| Ambient temperature | -40°C ... 80°C |
Downloads Go to file downloads
Datasheet:
-
H72517o CN 879x Hybrid Gas Density Monitorcn
pdf 2.6MB
-
H72517o DE 879x Hybrid Gas Density Monitorde
pdf 2.5MB
-
H72517o EN 879x Hybrid Gas Density Monitoren
pdf 2.5MB
-
H72517o ES 879x Hybrid Gas Density Monitores
pdf 2.5MB
-
H72517o FR 879x Hybrid Gas Density Monitorfr
pdf 2.5MB
-
H72517o IT 879x Hybrid Gas Density Monitorit
pdf 2.5MB
-
H72517o JP 879x Hybrid Gas Density Monitorjp
pdf 2.6MB
-
H72517o PL 879x Hybrid Gas Density Monitorpl
pdf 2.5MB
-
H72517o PT 879x Hybrid Gas Density Monitorpt
pdf 2.5MB
Manual:
Flyer:
