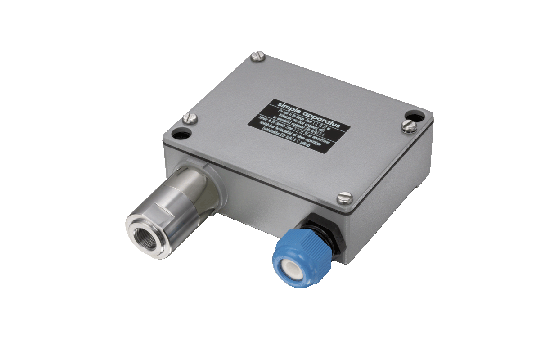

«Simple Apparatus» conformity to ATEX 947 Pressostat

Back to overview
  • Ex zones Ex zones

Main features

  • Compact design
  • Rugged housing
  • Protection IP 65
  • Diverse mounting positions
  • May be used as „simple apparatus“ in zones at risk of explosions
About

Technical Data

More Information
Product code 947
Name «Simple Apparatus» conformity to ATEX
Designation Pressostat
Product category

Mechanical pressure switches

Measuring range 1 ... 10 to 60 ... 600 bar
Measuring principle Piston
Designation of application Industrial pressostat
Approval / conformity EN60730-1/ EN60730-2-6: Typ 2.B.H EN60079-0, EN60079-11 Zone 1 and 2, 21 and 22
Repeatability ± 1.0 % FS typ.
Output signal 1 Floating change-over contact (SPDT)
Media temperature O-Ring NBR: -30°C ... +100°C O-Ring FKM: -15°C ... +150°C
Ambient temperature -25°C ... 70°C

Downloads Go to file downloads

Did you not find the product information you were looking for? Please contact our sales team.
