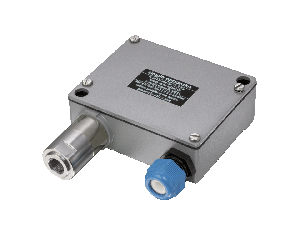

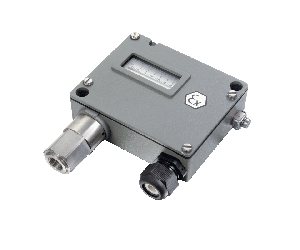

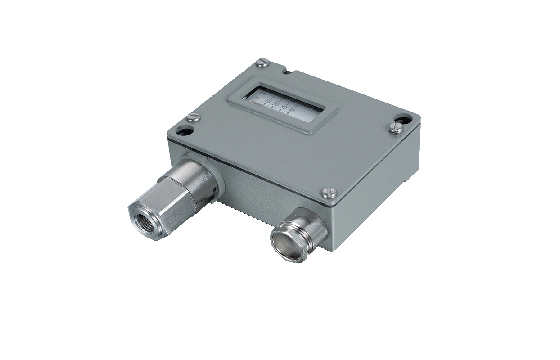

PK 944/947 Pressostat

Back to overview
  • Shipbuilding Shipbuilding

Main features

  • Rugged aluminium housing
  • Protection IP 65
  • Diverse mounting positions
About

Technical Data

More Information
Product code 944/947
Name PK
Designation Pressostat
Product category

Mechanical pressure switches

Measuring range 1 ... 10 to 60 ... 600 bar
Measuring principle Piston
Approval / conformity ABS, BV, CCS, DNV-GL, KRS, LRS, RINA EN60730-1/ EN60730-2-6: Type 2.B.H
Repeatability ± 1.0 % FS typ.
Output signal 1 Floating change-over contact (SPDT)
Electrical connections Screw terminal
Pressure connections G1/4" f, G1/2" m
Media temperature O-Ring NBR: -30°C ... +100°C O-Ring FKM: -15°C ... +150°C
Ambient temperature -20°C ... +70°C

Downloads Go to file downloads

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Measuring range [bar] Over pressure max. [bar]

PK40

4 ... 40

200

Sensor housing material: 1.4435
Type Code: 944 2381 704

PK250

25 ... 250

400

Sensor housing material: 1.4435
Type Code: 944 2385 712

PK10

1 ... 10

100

Sensor housing material: 1.4435
Type Code: 944 2378 700

PK100

10 ... 100

200

Sensor housing material: 1.4435
Type Code: 944 2383 708
