Main features
- Rugged aluminium housing, option: housing stainless steel
- IP66-rated protection
- Diverse mounting positions
- Ex db eb IIC T6 Gb
- Ex tb IIIC T80°C Db
About
Technical Data
| Product code | 900/904/912 |
|---|---|

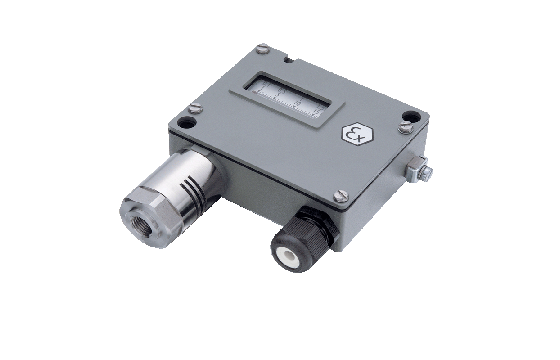

| Name | EXP |
| Designation | Ex Pressostat |
| Product category | Mechanical pressure switches |
| Measuring range | -0.9 ... 1.5 to 4 ... 40 bar |
| Measuring principle | Bellow |
| Applications | |
| Approval / conformity | IECEx, ATEX, UKEX |
| Repeatability | ± 1.0 % FS typ. |
| Output signal | 1 Floating change-over contact (SPDT) |
| Electrical connections | Screw terminal |
| Pressure connections | G1/4" f, G1/2" m |
| Media temperature | -40°C ... +150°C |
| Ambient temperature | -40°C ... +65°C |
Downloads Go to file downloads
Datasheet:
-
H72263s CN 900 904 912 EXP Ex Pressostatcn
pdf 564.2KB
-
H72263s DE 900 904 912 EXP Ex Pressostatde
pdf 505.5KB
-
H72263s EN 900 904 912 EXP Ex Pressostaten
pdf 504.5KB
-
H72263s ES 900 904 912 EXP Ex Pressostates
pdf 505.4KB
-
H72263s FR 900 904 912 EXP Ex Pressostatfr
pdf 505.3KB
-
H72263s IT 900 904 912 EXP Ex Pressostatit
pdf 504.8KB
-
H72263s JP 900 904 912 EXP Ex Pressostatjp
pdf 567.1KB
-
H72263s PL 900 904 912 EXP Ex Pressostatpl
pdf 506.1KB
-
H72263s PT 900 904 912 EXP Ex Pressostatpt
pdf 505.8KB
Manual:
Flyer:
-
H70916s CN 900 904 912 EXP Ex Pressostatcn
pdf 3.6MB
-
H70916s DE 900 904 912 EXP Ex Pressostatde
pdf 3.6MB
-
H70916s EN 900 904 912 EXP Ex Pressostaten
pdf 3.6MB
-
H70916s ES 900 904 912 EXP Ex Pressostates
pdf 3.6MB
-
H70916s FR 900 904 912 EXP Ex Pressostatfr
pdf 3.6MB
-
H70916s IT 900 904 912 EXP Ex Pressostatit
pdf 3.6MB
-
H70916s JP 900 904 912 EXP Ex Pressostatjp
pdf 3.6MB
-
H70916s PL 900 904 912 EXP Ex Pressostatpl
pdf 3.6MB
-
H70916s PT 900 904 912 EXP Ex Pressostatpt
pdf 3.6MB
Certificates:
