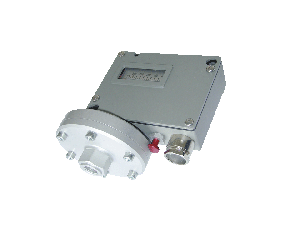

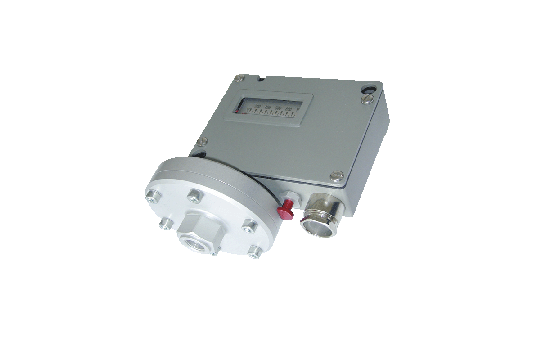

901/902/906 Limi Membrane Pressostat

Back to overview

Main features

  • Rugged aluminium housing
  • Protection IP 65
  • Diverse mounting positions

Technical Data

More Information
Product code 901/902/906
Designation Limi Membrane Pressostat
Product category

Mechanical pressure switches

Measuring principle Membrane
Approval / conformity EN60730-1/ EN60730-2-6: Typ 2.B.H
Repeatability ± 1.0 % FS typ.
Output signal 1 Floating change-over contact (SPDT)
Electrical connections Screw terminal
Pressure connections G1/4" f, G1/2" m
Media temperature -40°C ... +150°C
Ambient temperature -25°C ... +70°C
