Main features
- Smallest design
- Accuracy classes 0.1 %, 0.15 %, 0.3 %
- Excellent temperature resistance
- Relative and absolute pressure measurement
- Optional: Dielectric strength 500 VAC, meets EN 50155 (Railways)
About
Technical Data

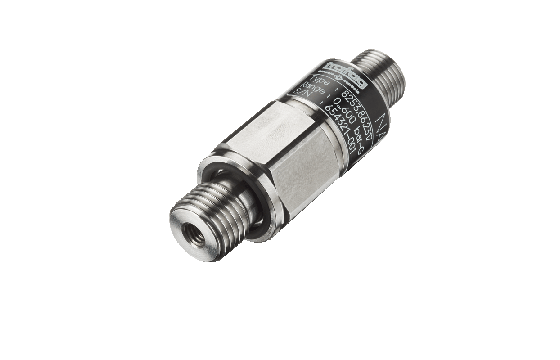

Product code | 8253 |
---|---|
Name | NAH |
Designation | Pressure Transmitter |
Product category | Pressure transmitters |
Measuring range | 0 ... 2.5 to 0 ... 600 bar 0 ... 30 to 0 ... 7500 psi |
Measuring principle | Thin-film-on-steel |
Applications | HydraulicsMachine toolsProcess technologyRailwaysTest benches |
Accuracy @ 25°C typ. | ± 0.3 % FS typ. ± 0.15 % FS typ. ± 0.1 % FS typ. |
Output signal | 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 ... 4.5 VDC ratiometric |
Electrical connections | Industrial standard, contact distance 9.4 mm; M12x1; MIL-C 26482; Cable IP67 |
Pressure connections | G1/4" m; 1/4"NPT m; 1/4"NPT f; 7/16"-20UNF m; 7/16"-20UNF f, DIN3866, valve opener; 7/16"-20UNF m, SAE4 (J1926); 9/16"-18UNF m, SAE6 (J1926); 3/8"-24UNF m, SAE3 (J514); R1/4" m, DIN2999; M14x1.5 m, DIN EN ISO 6149-2 |
Media temperature | -40°C ... +125°C |
Ambient temperature | -40°C ... +125°C |
