NAH 8254 Pressure Transmitter

Back to overview

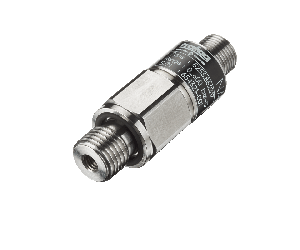

main product photo

Main features

  • Measuring accuracy 0.3 %
  • Completely welded steel sensor system without additional seals
  • Excellent long-term stability
  • Optional: 5-fold overpressure resistance
  • Optional: Switching output 1 or 2 PNP
About
The pressure transmitter NAH 8254 with increased accuracy of 0.3% and optional switching outputs has an exceptionally long-term stable thin-film-on-steel sensor cell with triple (optionally 5-fold) overpressure protection. The robust design and the wide temperature range of -40°C to +125°C make the NAH 8254 the ideal solution when pressure needs to be measured accurately and reliably under rough environmental conditions.

Technical Data

More Information
Product code 8254
Name NAH
Designation Pressure Transmitter
Product category

Pressure transmitters
Measuring range 0 ... 0.2 to 0 ... 700 bar 0 ... 3 to 0 ... 10000 psi
Measuring principle Thin-film-on-steel
Applications

Hydraulics
Machine tools
Measuring and test bench technology
Process technology
Accuracy @ 25°C typ. ± 0.3 % FS typ.
Output signal 4 ... 20 mA, 0 ... 5 VDC, 1 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC and more, 0.5 ... 4.5 VDC ratiometric, Switching output: 1 or 2 PNP
Electrical connections Industrial standard, contact distance 9.4 mm; M12x1; MIL-C 26482; Deutsch DT04-3P/4P; Cable
Pressure connections G1/4" m; G1/4" m (Manometer); G1/4" m with integrated damping; G1/8" m, DIN3852-E; 1/4"NPT m; 1/4"NPT f; 1/8"NPT m; 7/16"-20UNF f, SAE J512; 7/16"-20UNF m, SAE4 (J1926); 7/16"-20UNF m, DIN3866; 9/16"-18UNF m, SAE6 (J1926); R1/4" m, DIN3858; R1/4" m, DIN29
Media temperature –40°C ... +125°C
Ambient temperature –40°C ... +125°C (Cable PVC 22: -5°C ... +60°C) (Cable PUR 24: -40°C ... +70°C) (Cable Radox Tenuis 88: -40°C ... +100°C)

Downloads Go to file downloads

Datasheet:

Manual:

Flyer:

Certificates:

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product
Grouped product items
Product Name Measuring range [bar] Over pressure max. [bar] Output signal

NAH2.5A

0 ... 2.5

7.5

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.3
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 75 2317 32 0000 0000 19 33 44 61

NAH4.0A

0 ... 4

12

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.3
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 76 2317 32 0000 0000 19 33 44 61

NAH6.0A

0 ... 6

18

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.3
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 77 2317 32 0000 0000 19 33 44 61

NAH10.0A

0 ... 10

30

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.3
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 78 2317 32 0000 0000 19 33 44 61

NAH16.0A

0 ... 16

48

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.3
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 79 2317 32 0000 0000 19 33 44 61

NAH25.0A

0 ... 25

75

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.3
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 80 2317 32 0000 0000 19 33 44 61

NAH40.0A

0 ... 40

120

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.3
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 81 2317 32 0000 0000 19 33 44 61

NAH100.0A

0 ... 100

300

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.3
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 83 2317 32 0000 0000 19 33 44 61

NAH250.0A

0 ... 250

750

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.3
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 74 2317 32 0000 0000 19 33 44 61

NAH400.0A

0 ... 400

1000

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.3
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 84 2317 32 0000 0000 19 33 44 61

NAH600.0A

0 ... 600

1500

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.3
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 86 2317 32 0000 0000 19 33 44 61

NAH0.2A

0 ... 0.2

1.2

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.8
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 68 2317 32 0000 0000 19 33 44 61

NAH0.4A

0 ... 0.4

1.2

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.8
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 69 2317 32 0000 0000 19 33 44 61

NAH0.6A

0 ... 0.6

1.2

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.8
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 70 2317 32 0000 0000 19 33 44 61

NAH1.0A

0 ... 1.0

2

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.6
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 71 2317 32 0000 0000 19 33 44 61

NAH1.6A

0 ... 1.6

3.2

4 ... 20 mA
Accuracy @ 25°C typ.: ± 0.6
NLH @ 25°C (BSL) FS typ.: ± 0.2
Supply [VDC]: 9 ... 32
Pressure connection: G1/4" male
Type Code: 8254 73 2317 32 0000 0000 19 33 44 61
