Main features
- Accuracy up to 0.05 % FS
- Versions with frontal or flush diaphragm
- Media temperature to 125°C
- EMC protection, IEC 61000
About
Technical Data
| Product code | 8845 |
|---|---|
| Name | ESH |

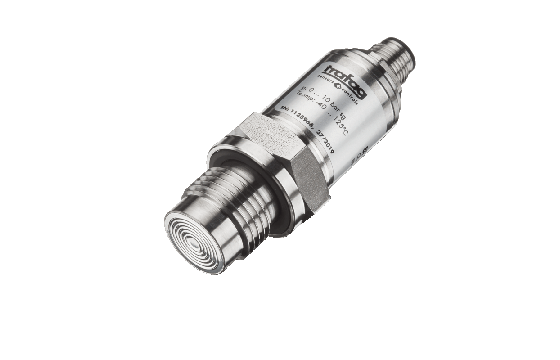

| Designation | High Accuracy Pressure Transmitter |
| Product category | Pressure transmitters |
| Measuring range | 0 ... 0.1 to 0 ... 100 bar |
| Measuring principle | Piezoresistive |
| Accuracy @ 25°C typ. | 0.05 % FS |
| Output signal | 4 ... 20 mA, 0 ... 5 VDC, 0 ... 10 VDC |
| Electrical connections | EN175301-803-A; M12x1; MIL-C 26482; Binder 723 |
| Pressure connections | 1/4NPT m; 1/2NPT m; G1/4 f; G1/4 m; G1/2 m; G1/2 m, frontal membrane; G1/2 m, flush membrane |
| Media temperature | -40°C ... +125°C |
| Ambient temperature | -40°C ... +125°C |
| Special features | Flush |
Downloads Go to file downloads
Datasheet:
-
H72354c CN 8845 ESH High accuracy Pressure Transmittercn
pdf 1MB
-
H72354c DE 8845 ESH High accuracy Pressure Transmitterde
pdf 1011.5KB
-
H72354c EN 8845 ESH High accuracy Pressure Transmitteren
pdf 1010.6KB
-
H72354c ES 8845 ESH High accuracy Pressure Transmitteres
pdf 1011.4KB
-
H72354c FR 8845 ESH High accuracy Pressure Transmitterfr
pdf 1011.7KB
-
H72354c IT 8845 ESH High accuracy Pressure Transmitterit
pdf 1010.8KB
-
H72354c JP 8845 ESH High accuracy Pressure Transmitterjp
pdf 1.1MB
-
H72354c PL 8845 ESH High accuracy Pressure Transmitterpl
pdf 1012.4KB
-
H72354c PT 8845 ESH High accuracy Pressure Transmitterpt
pdf 1011.8KB
Manual:
Certificates:
-
DNVGL Pressure Transmitter 8854en
pdf 169.8KB
