IA/IAS 409/419 Indu Ambistat

Back to overview

Skip to the end of the images gallery

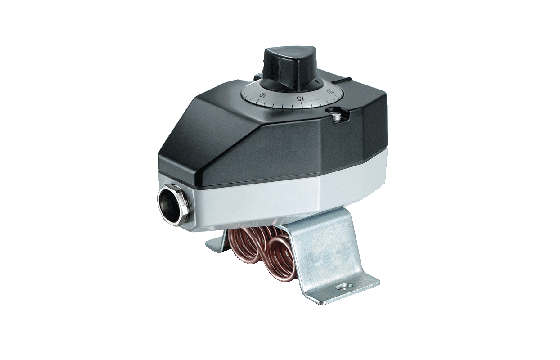

main product photo

Skip to the beginning of the images gallery

Main features

Compact design
Rugged housing
Protection IP65
Any mounting position possible

About

Technical Data

More Information
Product code	409/419
Name	IA/IAS
Designation	Indu Ambistat
Product category	Thermostats
Measuring range	-30°C ... +30°C to 0°C ... +60°C
Applications	HVAC
Repeatability	± 0.5 % FS typ.
Designation of application	Industrial room thermostat
Approval / conformity	EN60730-1/ EN60730-2-9: Type 2.B.H
Output signal	Floating change-over contact
Ambient temperature	See ordering information

Downloads Go to file downloads

Datasheet:

H72116m CN 409 419 IA IAS Indu Ambistat
cn
pdf 467.2KB
H72116m DE 409 419 IA IAS Indu Ambistat
de
pdf 399.5KB
H72116m EN 409 419 IA IAS Indu Ambistat
en
pdf 395.5KB
H72116m ES 409 419 IA IAS Indu Ambistat
es
pdf 414.9KB
H72116m FR 409 419 IA IAS Indu Ambistat
fr
pdf 396KB
H72116m IT 409 419 IA IAS Indu Ambistat
it
pdf 414.3KB
H72116m JP 409 419 IA IAS Indu Ambistat
jp
pdf 476.7KB
H72116m PL 409 419 IA IAS Indu Ambistat
pl
pdf 415.6KB
H72116m PT 409 419 IA IAS Indu Ambistat
pt
pdf 415.5KB

Manual:

H73111c Industat Navistat Instructions
en
pdf 565.8KB

Flyer:

H70964m CN 409 419 IA IAS Indu Ambistat
cn
pdf 3.6MB
H70964m DE 409 419 IA IAS Indu Ambistat
de
pdf 3.6MB
H70964m EN 409 419 IA IAS Indu Ambistat
en
pdf 3.6MB
H70964m ES 409 419 IA IAS Indu Ambistat
es
pdf 3.6MB
H70964m FR 409 419 IA IAS Indu Ambistat
fr
pdf 3.6MB
H70964m IT 409 419 IA IAS Indu Ambistat
it
pdf 3.6MB
H70964m JP 409 419 IA IAS Indu Ambistat
jp
pdf 3.6MB
H70964m PL 409 419 IA IAS Indu Ambistat
pl
pdf 3.6MB
H70964m PT 409 419 IA IAS Indu Ambistat
pt
pdf 3.6MB

Certificates:

CE EU declaration of conformity Thermostat type 4xx
en
pdf 56.4KB

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product

Grouped product items

Product Name	Temperature range [°C]

-30 ... +30

Sensor: Sensor coil

Set point adjustment: Internal switchpoint adjustment

Sensor material: Copper

Type Code: 419 2502 522 27

-30 ... +30

Sensor: Sensor coil

Set point adjustment: External switchpoint adjustment

Sensor material: Copper

Type Code: 409 2502 522 27

+5 ... +35

Sensor: Sensor coil

Set point adjustment: External switchpoint adjustment

Sensor material: Copper

Type Code: 409 2510 522 27

0 ... +60

Sensor: Sensor coil

Set point adjustment: External switchpoint adjustment

Sensor material: Copper

Type Code: 409 2512 522 27

+5 ... +35

Sensor: Sensor coil

Set point adjustment: Internal switchpoint adjustment

Sensor material: Copper

Type Code: 419 2510 522 27

0 ... +60

Sensor: Sensor coil

Set point adjustment: Internal switchpoint adjustment

Sensor material: Copper

Type Code: 419 2512 522 27
