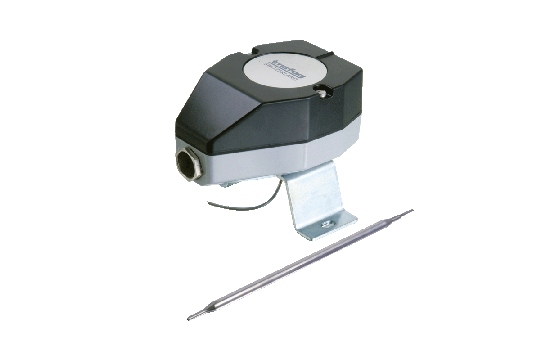

Main features
- Compact design
- Rugged housing
- Protection IP 65
- Diverse mounting positions
About
Technical Data
| Product code | 404/414 |
|---|---|
| Name | I/IS |
| Designation | Industat |
| Product category | Thermostats |
| Measuring range | -30°C ... +40°C to +70°C ... +350°C |
| Repeatability | ± 0.5 % FS typ. |
| Designation of application | Industrial thermostat with remote sensor |
| Approval / conformity | EN60730-1/ EN60730-2-9: Type 2.B.H |
| Output signal | Floating change-over contact |
| Ambient temperature | Range ≤ +45°C: -30°C ... +50°C Range +45°C ... +250°C: -30°C ... +70°C Range > + 250°C: -10°C ... +70°C (Important: Temperature at sensor may not exceed maximum sensor temperature) |
Downloads Go to file downloads
Datasheet:
-
H72110u CN 404 414 IS Industatcn
pdf 439.8KB
-
H72110u DE 404 414 IS Industatde
pdf 374.5KB
-
H72110u EN 404 414 IS Industaten
pdf 358.4KB
-
H72110u ES 404 414 IS Industates
pdf 374.3KB
-
H72110u FR 404 414 IS Industatfr
pdf 374KB
-
H72110u IT 404 414 IS Industatit
pdf 373.6KB
-
H72110u JP 404 414 IS Industatjp
pdf 450.1KB
-
H72110u PL 404 414 IS Industatpl
pdf 374.8KB
-
H72110u PT 404 414 IS Industatpt
pdf 374.8KB
Manual:
Certificates:
Did you not find the product information you were looking for? Please contact our sales team.
