EXS 404/414

EXS 404/414 EX Industat

Back to overview

Ex zones

Skip to the end of the images gallery

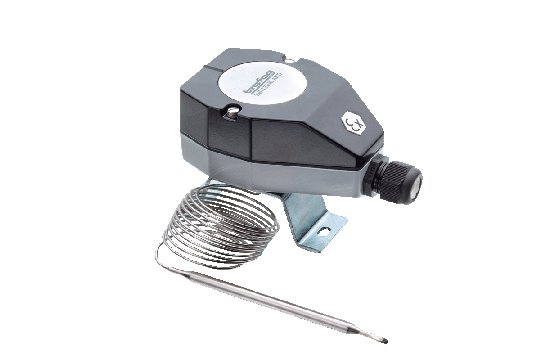

main product photo

Skip to the beginning of the images gallery

Main features

Compact design
Rugged housing
Any mounting position possible
Ex db eb IIC T6 Gb
Ex tb IIIC T80°C Db

About

Technical Data

More Information
Product code	404/414
Name	EXS
Designation	EX Industat
Product category	Thermostats
Measuring range	-30°C ... +40°C to +70°C ... +350°C
Applications	II 2G / D
Repeatability	± 0.5 % FS typ.
Designation of application	Ex Industrial thermostat with remote sensor
Approval / conformity	SEV 15 ATEX 0156 X IECEx SEV 17.0010X
Output signal	Floating change-over contact
Ambient temperature	Range ≤ +45°C: -30°C ... +50°C Range +45°C ... +250°C: -30°C ... +60°C Range > + 250°C: -10°C ... +60°C

Downloads Go to file downloads

Datasheet:

H72108r CN 404 414 EXS Ex Industat
cn
pdf 472.2KB
H72108r DE 404 414 EXS Ex Industat
de
pdf 410.5KB
H72108r EN 404 414 EXS Ex Industat
en
pdf 409.2KB
H72108r ES 404 414 EXS Ex Industat
es
pdf 410.1KB
H72108r FR 404 414 EXS Ex Industat
fr
pdf 409.9KB
H72108r IT 404 414 EXS Ex Industat
it
pdf 409.6KB
H72108r JP 404 414 EXS Ex Industat
jp
pdf 481.3KB
H72108r PL 404 414 EXS Ex Industat
pl
pdf 410.8KB
H72108r PT 404 414 EXS Ex Industat
pt
pdf 410.5KB

Manual:

H73172h Thermostat EXAS 409 419 EXS 404 414
en
pdf 571.7KB

Flyer:

H70970r CN 404 414 EXS Ex Industat
cn
pdf 3.6MB
H70970r DE 404 414 EXS Ex Industat
de
pdf 3.6MB
H70970r EN 404 414 EXS Ex Industat
en
pdf 3.6MB
H70970r ES 404 414 EXS Ex Industat
es
pdf 3.6MB
H70970r FR 404 414 EXS Ex Industat
fr
pdf 3.6MB
H70970r IT 404 414 EXS Ex Industat
it
pdf 3.6MB
H70970r JP 404 414 EXS Ex Industat
jp
pdf 3.6MB
H70970r PL 404 414 EXS Ex Industat
pl
pdf 3.6MB
H70970r PT 404 414 EXS Ex Industat
pt
pdf 3.6MB

Certificates:

CE EU declaration of conformity Ex Thermostats EXS EXAS 4xx
en
pdf 58KB
IECEx SEV 170010X T-Switch
en
pdf 1.5MB
SEV 15 ATEX 0156X e 2017 T-Switch
en
pdf 1.2MB

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product

Grouped product items

Product Name	Temperature range [°C]	Sensor max. [°C]

+5 ... +95

105

Sensor: Capillary tube with remote sensor

Set point adjustment: Internal switchpoint adjustment

Sensor material: Copper nickel plated

Type Code: 414 9120 323 27 0000 0000 02

-30 ... +40

45

Sensor: Capillary tube with remote sensor

Set point adjustment: Internal switchpoint adjustment

Sensor material: Copper nickel plated

Type Code: 414 9101 423 27 0000 0000 02

0 ... +35

50

Sensor: Capillary tube with remote sensor

Set point adjustment: Internal switchpoint adjustment

Sensor material: Copper nickel plated

Type Code: 414 9109 423 27 0000 0000 02

+20 ... +150

165

Sensor: Capillary tube with remote sensor

Set point adjustment: Internal switchpoint adjustment

Sensor material: Copper nickel plated

Type Code: 414 9131 123 27 0000 0000 02

+20 ... +230

250

Sensor: Capillary tube with remote sensor

Set point adjustment: Internal switchpoint adjustment

Sensor material: 1.4435 (AISI316L)

Type Code: 414 9124 021 27 0000 0000 02

+70 ... +350

380

Sensor: Capillary tube with remote sensor

Set point adjustment: Internal switchpoint adjustment

Sensor material: 1.4435 (AISI316L)

Type Code: 414 9154 021 27 0000 0000 02
