Main features
- Rugged aluminium housing
- Protection IP 65
- Diverse mounting positions
About
Technical Data
| Product code | 900/904/912 |
|---|---|

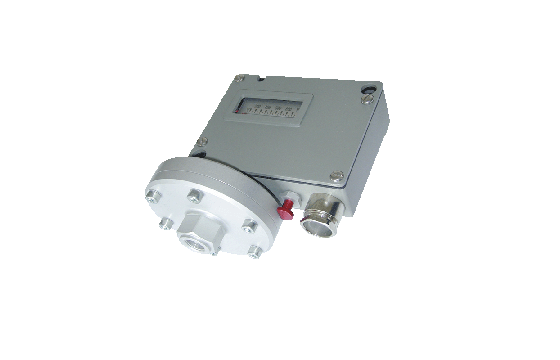

| Designation | Membrane Pressostat |
| Product category | Mechanical pressure switches |
| Measuring range | 0.02 ... 0.25 to 0.05 ... 1 bar |
| Measuring principle | Membrane |
| Approval / conformity | EN60730-1/ EN60730-2-6: Typ 2.B.H |
| Repeatability | ± 1.0 % FS typ. |
| Output signal | 1 Floating change-over contact (SPDT) |
| Electrical connections | Screw terminal |
| Pressure connections | G1/4" f, G1/2" m |
| Media temperature | -40°C ... +150°C |
| Ambient temperature | -25°C ... +70°C |
Downloads Go to file downloads
Datasheet:
-
H72262p CN 900 904 912 Membrane Pressostatcn
pdf 431.9KB
-
H72262p DE 900 904 912 Membrane Pressostatde
pdf 377.4KB
-
H72262p EN 900 904 912 Membrane Pressostaten
pdf 406.8KB
-
H72262p ES 900 904 912 Membrane Pressostates
pdf 376.9KB
-
H72262p FR 900 904 912 Membrane Pressostatfr
pdf 407.5KB
-
H72262p IT 900 904 912 Membrane Pressostatit
pdf 376.6KB
-
H72262p JP 900 904 912 Membrane Pressostatjp
pdf 441.8KB
-
H72262p PL 900 904 912 Membrane Pressostatpl
pdf 378KB
-
H72262p PT 900 904 912 Membrane Pressostatpt
pdf 377.5KB
Manual:
Certificates:
-
CE UKCA Declaration of conformity 9xxen
pdf 68.1KB
