Main features
- Measuring accuracy 0.3 %
- Completely welded steel sensor system without additional seals
- Excellent long-term stability
- Optional: 5-fold overpressure resistance
- Optional: Switching output 1 or 2 PNP
About

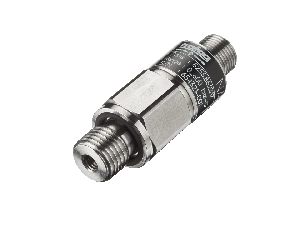

The pressure transmitter NAH 8254 with increased accuracy of 0.3% and optional switching outputs has an exceptionally long-term stable thin-film-on-steel sensor cell with triple (optionally 5-fold) overpressure protection. The robust design and the wide temperature range of -40°C to +125°C make the NAH 8254 the ideal solution when pressure needs to be measured accurately and reliably under rough environmental conditions.
Technical Data
| Product code | 8254 |
|---|---|
| Name | NAH |
| Designation | Pressure Transmitter |
| Product category | Pressure transmitters |
| Measuring range | 0 ... 0.2 to 0 ... 700 bar 0 ... 3 to 0 ... 10000 psi |
| Measuring principle | Thin-film-on-steel |
| Accuracy @ 25°C typ. | ± 0.3 % FS typ. |
| Output signal | 4 ... 20 mA, 0 ... 5 VDC, 1 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC and more, 0.5 ... 4.5 VDC ratiometric, Switching output: 1 or 2 PNP |
| Electrical connections | Industrial standard, contact distance 9.4 mm; M12x1; MIL-C 26482; Deutsch DT04-3P/4P; Cable |
| Pressure connections | G1/4" m; G1/4" m (Manometer); G1/4" m with integrated damping; G1/8" m, DIN3852-E; 1/4"NPT m; 1/4"NPT f; 1/8"NPT m; 7/16"-20UNF f, SAE J512; 7/16"-20UNF m, SAE4 (J1926); 7/16"-20UNF m, DIN3866; 9/16"-18UNF m, SAE6 (J1926); R1/4" m, DIN3858; R1/4" m, DIN29 |
| Media temperature | –40°C ... +125°C |
| Ambient temperature | max. -40°C ... + 125°C (UL-rated Umgebungstemperatur: -20°C ... +80°C) details see section Electrical Connection |
| Measuring range | ≤ 1 bar≤ 100 bar≤ 600 bar< 15 psi< 1500 psi< 7500 psi |
