NAH 8253 Pressure Transmitter

Back to overview

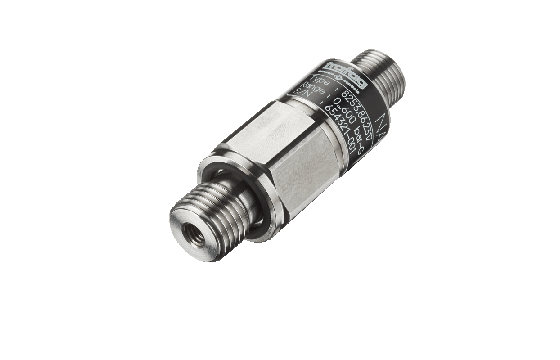

main product photo

Main features

    • Smallest design
    • Accuracy classes 0.1 %, 0.15 %, 0.3 %
    • Excellent temperature resistance
    • Relative and absolute pressure measurement
    • Optional: Dielectric strength 500 VAC, meets EN 50155 (Railways)
About

Technical Data

More Information
Product code 8253
Name NAH
Designation Pressure Transmitter
Product category

Pressure transmitters
Measuring range 0 ... 2.5 to 0 ... 600 bar
0 ... 30 to 0 ... 7500 psi
Measuring principle Thin-film-on-steel
Accuracy @ 25°C typ. ± 0.3 % FS typ.
± 0.15 % FS typ.
± 0.1 % FS typ.
Output signal 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC,
0 ... 10 VDC, 0.5 ... 4.5 VDC ratiometric
Electrical connections Industrial standard, contact distance 9.4 mm; M12x1; MIL-C 26482; Cable IP67
Pressure connections

G1/4 m;
1/4NPT m; 1/4NPT f;
7/16-20UNF m;
7/16-20UNF m, DIN3866;
7/16-20UNF f, SAE J512 with valve opener;
7/16-20UNF m, SAE J1926-2;
9/16-18UNF m, SAE J1926-2;
3/8-24UNF m, SAE3 (J514);
R1/4 m, DIN2999;
M14
Media temperature -40°C ... +125°C
Ambient temperature -40°C ... +125°C
Output signal

4 … 20 mA
0 … 5 VDC
0 … 10 VDC
1 … 6 VDC
0.5 … 4.5 VDC ratiometric
Special features

Compact design

Downloads Go to file downloads

Datasheet:

Manual:

Certificates:

Did you not find the product information you were looking for? Please contact our sales team.

Related Products
  1. NAH 8254
    NAH 8254
  2. CMP 8270

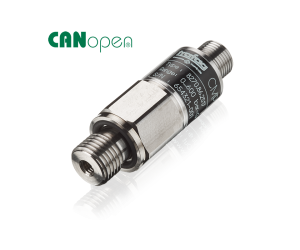

    CMP 8270
  3. ESH 8845

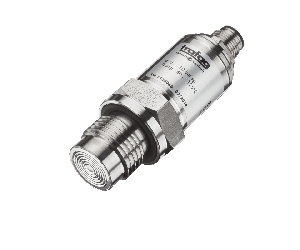

    ESH 8845
