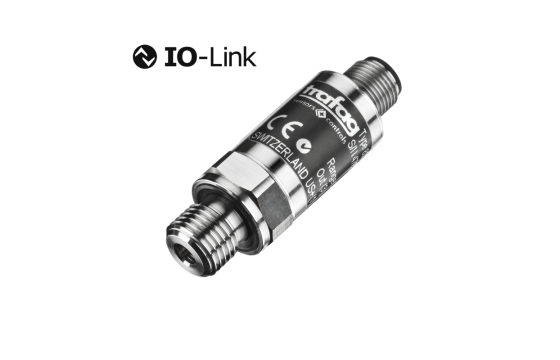

NAI 8273 IO-Link Pressure Transmitter and Switch

Back to overview

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Main features

Pressure measuring accuracy 0.3 %, 0.5 %
Media and device temperature measurement
COM3, min. process cycle time 1 ms
2 Switching outputs PNP/NPN configurable
Optional: 5-fold overpressure resistance

About

The NAI 8273 IO-Link pressure transmitter is designed as a smart sensor and provides application-relevant information in addition to the process data. The process data contains the pressure value and the media temperature, which is measured directly at the exceptionally long-term stable thin-film-on-steel pressure sensor cell. The small sensor dimension combined with the pressure and temperature value of the media make the NAI 8273 the ideal choice in various applications. For the use of the conventional switching outputs, the polarity NPN and PNP is configurable.

Technical Data

More Information
Product code	8273
Name	NAI
Designation	IO-Link Pressure Transmitter and Switch
Product category	Pressure transmitters
Measuring range	-0.2 ... 0.2 to 0 ... 700 bar
Measuring principle	Thin-film-on-steel
Accuracy @ 25°C typ.	± 0.5 % FS typ. ± 0.3 % FS typ.
Output signal	IO-Link 1.1, COM3, min. process cycle time 1 ms, Smart Sensor Profile ED2, 2 Switching outputs PNP/NPN/Push-Pull configurable
Pressure connections	G1/4 m; G1/4 m (Manometer); G1/4 m with integrated damping; G1/8 m, DIN3852-E; 1/4NPT m; 1/8NPT m; 3/8-24UNF m, SAE J1926-2; 7/16-20UNF f, SAE J512 without valve opener; 7/16-20UNF f, SAE J512 with valve opener;
Media temperature	-40°C ... +125°C
Ambient temperature	-40°C ... +105°C
Output signal	1 PNP Switch 2 PNP Switch IO-Link
Special features	Compact design Measurement of pressure and temperature Measuring range adjustable
