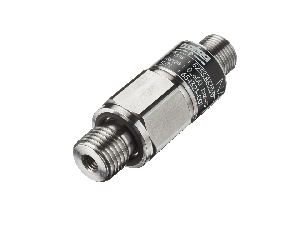

NAH 8254 Pressure Transmitter

Back to overview

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Main features

Measuring accuracy 0.3 %
Completely welded steel sensor system without additional seals
Excellent long-term stability
Optional: 5-fold overpressure resistance
Optional: Switching output 1 or 2 PNP

About

The pressure transmitter NAH 8254 with increased accuracy of 0.3% and optional switching outputs has an exceptionally long-term stable thin-film-on-steel sensor cell with triple (optionally 5-fold) overpressure protection. The robust design and the wide temperature range of -40°C to +125°C make the NAH 8254 the ideal solution when pressure needs to be measured accurately and reliably under rough environmental conditions.

Technical Data

More Information
Product code	8254
Name	NAH
Designation	Pressure Transmitter
Product category	Pressure transmitters
Measuring range	0 ... 0.2 to 0 ... 1000 bar 0 ... 3 to 0 ... 10000 psi
Measuring principle	Thin-film-on-steel
Accuracy @ 25°C typ.	± 0.3 % FS typ.
Output signal	4 ... 20 mA, 0 ... 5 VDC, 1 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC and more, 0.5 ... 4.5 VDC ratiometric, Switching output: 1 or 2 PNP
Electrical connections	Industrial standard, contact distance 9.4 mm; M12x1; MIL-C 26482; Deutsch DT04-3P/4P; Cable
Pressure connections	G1/4 m; G1/4 m (Manometer); G1/4 m with integrated damping; G1/8 m, DIN3852-E; 1/4NPT m; 1/8NPT m; 3/8-24UNF-2A m; 7/16-20UNF f, SAE J512; 7/16-20UNF m, SAE J1926-2; 7/16-20UNF m, DIN3866; 9/16-18UNF m, SAE J1926
Media temperature	-40°C ... +125°C
Ambient temperature	max. -40°C ... + 125°C (UL-rated ambient temperature: -20°C ... +80°C) Details see section Electrical Connection
Output signal	4 … 20 mA 0 … 5 VDC 0 … 10 VDC 1 … 6 VDC 0.5 … 4.5 VDC ratiometric 1 PNP Switch 2 PNP Switch
Special features	Compact design High overpressure

Downloads Go to file downloads

Datasheet:

H72304ac CN 8254 NAH Pressure Transmitter
cn
pdf 1.6MB
H72304ac DE 8254 NAH Pressure Transmitter
de
pdf 1.4MB
H72304ac EN 8254 NAH Pressure Transmitter
en
pdf 1.5MB
H72304ac ES 8254 NAH Pressure Transmitter
es
pdf 1.4MB
H72304ac FR 8254 NAH Pressure Transmitter
fr
pdf 1.4MB
H72304ac IT 8254 NAH Pressure Transmitter
it
pdf 1.4MB
H72304ac JP 8254 NAH Pressure Transmitter
jp
pdf 1.6MB
H72304ac PL 8254 NAH Pressure Transmitter
pl
pdf 1.4MB
H72304ac PT 8254 NAH Pressure Transmitter
pt
pdf 1.5MB

Manual:

H73303ab Instructions 8250 8252 8254 8256 8258 NHT NAT NAH NAE NAR Pressure Transmitter A5
en
pdf 889KB

Certificates:

Trafag UL Certificate E516645 Vol1 Sec1 current
en
pdf 324.8KB
CE UKCA Declaration of conformity Pressure Transmitter
en
pdf 73.9KB
DNVGL MR NAE 8256
en
pdf 73KB

STEP files and software:

8252.XX.XX.30.02
en
STEP 288.4KB
825X.XX.XX.15.01
en
STEP 1.4MB
825X.XX.XX.15.02
en
STEP 513.2KB
825X.XX.XX.15.08
en
STEP 238.6KB
825X.XX.XX.15.22 24 88
en
STEP 382.2KB
825X.XX.XX.15.32
en
STEP 1.2MB
825X.XX.XX.15.35
en
STEP 1.3MB
825X.XX.XX.15.D3
en
STEP 1.6MB
825X.XX.XX.15.D4
en
STEP 1.3MB
825X.XX.XX.16.01
en
STEP 1.4MB
825X.XX.XX.16.02
en
STEP 505KB
825X.XX.XX.16.08
en
STEP 230.4KB
825X.XX.XX.16.32
en
STEP 1.2MB
825X.XX.XX.16.35
en
STEP 1.3MB
825X.XX.XX.16.D3
en
STEP 1.6MB
825X.XX.XX.16.D4
en
STEP 1.3MB
825X.XX.XX.17.01
en
STEP 1.4MB
825X.XX.XX.17.02
en
STEP 523.5KB
825X.XX.XX.17.08
en
STEP 248.9KB
825X.XX.XX.17.22 24 88
en
STEP 392.5KB
825X.XX.XX.17.32
en
STEP 1.2MB
825X.XX.XX.17.35
en
STEP 1.3MB
825X.XX.XX.17.D3
en
STEP 1.6MB
825X.XX.XX.17.D4
en
STEP 1.3MB
825X.XX.XX.17.J4
en
STEP 639.2KB
825X.XX.XX.18.01
en
STEP 1.4MB
825X.XX.XX.18.02
en
STEP 488.5KB
825X.XX.XX.18.08
en
STEP 213.8KB
825X.XX.XX.18.22 24 88
en
STEP 357.5KB
825X.XX.XX.18.32
en
STEP 1.2MB
825X.XX.XX.18.35
en
STEP 1.3MB
825X.XX.XX.18.D3
en
STEP 1.6MB
825X.XX.XX.18.D4
en
STEP 1.3MB
825X.XX.XX.19.01
en
STEP 1.4MB
825X.XX.XX.19.02
en
STEP 503.8KB
825X.XX.XX.19.08
en
STEP 229.1KB
825X.XX.XX.19.22 24 88
en
STEP 372.8KB
825X.XX.XX.19.32
en
STEP 1.2MB
825X.XX.XX.19.35
en
STEP 1.3MB
825X.XX.XX.19.D3
en
STEP 1.6MB
825X.XX.XX.19.D4
en
STEP 1.3MB
825X.XX.XX.24.01
en
STEP 1.5MB
825X.XX.XX.24.02
en
STEP 548.2KB
825X.XX.XX.24.08
en
STEP 273.5KB
825X.XX.XX.24.22 24 88
en
STEP 417.1KB
825X.XX.XX.24.32
en
STEP 1.3MB
825X.XX.XX.24.35
en
STEP 1.3MB
825X.XX.XX.24.D3
en
STEP 1.6MB
825X.XX.XX.24.D4
en
STEP 1.3MB
825X.XX.XX.30.01
en
STEP 1.4MB
825X.XX.XX.30.02
en
STEP 494.6KB
825X.XX.XX.30.08
en
STEP 220KB
825X.XX.XX.30.32
en
STEP 1.2MB
825X.XX.XX.30.35
en
STEP 1.3MB
825X.XX.XX.30.D3
en
STEP 1.6MB
825X.XX.XX.30.D4
en
STEP 1.3MB
825X.XX.XX.32.01
en
STEP 1.4MB
825X.XX.XX.32.02
en
STEP 532.1KB
825X.XX.XX.32.08
en
STEP 257.5KB
825X.XX.XX.32.22 24 88
en
STEP 401.1KB
825X.XX.XX.32.32
en
STEP 1.3MB
825X.XX.XX.32.35
en
STEP 1.3MB
825X.XX.XX.32.D3
en
STEP 1.6MB
825X.XX.XX.32.D4
en
STEP 1.3MB
825X.XX.XX.42.01
en
STEP 1.4MB
825X.XX.XX.42.02
en
STEP 515.8KB
825X.XX.XX.42.08
en
STEP 241.2KB
825X.XX.XX.42.22 24 88
en
STEP 384.8KB
825X.XX.XX.42.24
en
STEP 642.3KB
825X.XX.XX.42.32
en
STEP 1.2MB
825X.XX.XX.42.35
en
STEP 1.3MB
825X.XX.XX.42.D3
en
STEP 1.8MB
825X.XX.XX.42.D4
en
STEP 1.3MB
825X.XX.XX.43.01
en
STEP 1.4MB
825X.XX.XX.43.02
en
STEP 503KB
825X.XX.XX.43.08
en
STEP 228.3KB
825X.XX.XX.43.32
en
STEP 1.2MB
825X.XX.XX.43.35
en
STEP 1.3MB
825X.XX.XX.43.D3
en
STEP 1.6MB
825X.XX.XX.54.22 24 88
en
STEP 334.3KB

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product

Grouped product items

Product Name	Measuring range [bar]	Over pressure max. [bar]

NAH0.2A

0 ... 0.2

1.2

Accuracy @ 25°C typ.: ± 0.8

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 68 2317 32 0000 0000 19 33 44 61

NAH0.4A

0 ... 0.4

1.2

Accuracy @ 25°C typ.: ± 0.8

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 69 2317 32 0000 0000 19 33 44 61

NAH0.6A

0 ... 0.6

1.2

Accuracy @ 25°C typ.: ± 0.8

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 70 2317 32 0000 0000 19 33 44 61

NAH1.0A

0 ... 1.0

Accuracy @ 25°C typ.: ± 0.6

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 71 2317 32 0000 0000 19 33 44 61

NAH1.6A

0 ... 1.6

3.2

Accuracy @ 25°C typ.: ± 0.6

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 73 2317 32 0000 0000 19 33 44 61

NAH2.5A

0 ... 2.5

7.5

Accuracy @ 25°C typ.: ± 0.3

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 75 2317 32 0000 0000 19 33 44 61

NAH4.0A

0 ... 4

Accuracy @ 25°C typ.: ± 0.3

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 76 2317 32 0000 0000 19 33 44 61

NAH6.0A

0 ... 6

Accuracy @ 25°C typ.: ± 0.3

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 77 2317 32 0000 0000 19 33 44 61

NAH10.0A

0 ... 10

Accuracy @ 25°C typ.: ± 0.3

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 78 2317 32 0000 0000 19 33 44 61

NAH16.0A

0 ... 16

Accuracy @ 25°C typ.: ± 0.3

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 79 2317 32 0000 0000 19 33 44 61

NAH25.0A

0 ... 25

Accuracy @ 25°C typ.: ± 0.3

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 80 2317 32 0000 0000 19 33 44 61

NAH40.0A

0 ... 40

120

Accuracy @ 25°C typ.: ± 0.3

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 81 2317 32 0000 0000 19 33 44 61

NAH100.0A

0 ... 100

300

Accuracy @ 25°C typ.: ± 0.3

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 83 2317 32 0000 0000 19 33 44 61

NAH250.0A

0 ... 250

750

Accuracy @ 25°C typ.: ± 0.3

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 74 2317 32 0000 0000 19 33 44 61

NAH400.0A

0 ... 400

1000

Accuracy @ 25°C typ.: ± 0.3

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 84 2317 32 0000 0000 19 33 44 61

NAH600.0A

0 ... 600

1500

Accuracy @ 25°C typ.: ± 0.3

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8254 86 2317 32 0000 0000 19 33 44 61
