Main features
- Exact switching following isochore at all temperatures
- No contact bouncing
- Independent, galvanically separated circuits
- Output signal RS485 / MODBUS
- Long term drift free sensor output signal
About

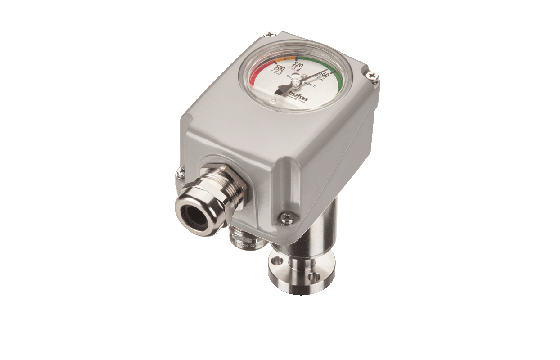

The hybrid gas density monitor combines self-acting monitoring and continuous density measurement of insulating gases in one device. The digital RS485/Modbus output allows the parameterisation of gas density, gas pressure and gas temperature output data. Trend analysis helps to detect possible leakages sooner, provides data for preventive maintenance measures and therefore facilitates compliance with greenhouse gas regulations. This precise and maintenance-free hybrid density monitor is reliable in operation over decades for indoor and outdoor applications.
Technical Data
| Product code | 879x |
|---|---|
| Designation | Hybrid Gas Density Monitor RS485/MODBUS |
| Measuring principle | Mechanical monitoring: Principle: Reference gas measurement Electronic monitoring: Principle: Oscillating quartz measurement |
| Designation of application | Gas Density Monitor for SF6 and other gases with output signal for continuous monitoring |
| Output signal | RS485 / MODBUS |
| Ambient temperature | -40°C ... 80°C |
Downloads Go to file downloads
Datasheet:
Did you not find the product information you were looking for? Please contact our sales team.
