Main features
- Pressure measuring accuracy 0.3 %, 0.5 %
- Media and device temperature measurement
- COM3, min. process cycle time 1 ms
- 2 Switching outputs PNP/NPN configurable
- Optional: 5-fold overpressure resistance
About

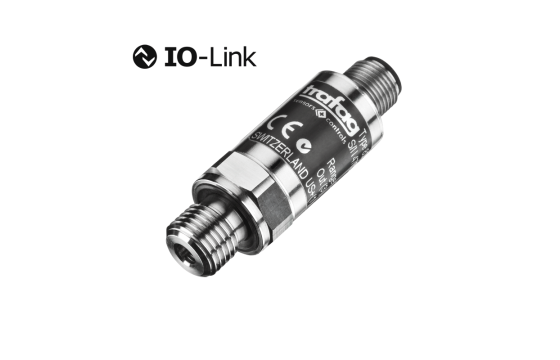

The NAI 8273 IO-Link pressure transmitter is designed as a smart sensor and provides application-relevant information in addition to the process data. The process data contains the pressure value and the media temperature, which is measured directly at the exceptionally long-term stable thin-film-on-steel pressure sensor cell. The small sensor dimension combined with the pressure and temperature value of the media make the NAI 8273 the ideal choice in various applications. For the use of the conventional switching outputs, the polarity NPN and PNP is configurable.
Technical Data
| Product code | 8273 |
|---|---|
| Name | NAI |
| Designation | IO-Link Pressure Transmitter and Switch |
| Product category | Pressure transmitters |
| Measuring principle | Thin-film-on-steel |
| Accuracy @ 25°C typ. | ± 0.5 % FS typ. ± 0.3 % FS typ. |
| Output signal | IO-Link 1.1, COM3, min. process cycle time 1 ms, Smart Sensor Profile ED2, 2 Switching outputs PNP/NPN/Push-Pull configurable |
| Pressure connections | G1/4" m; G1/4" m (Manometer); G1/4" m with integrated damping; G1/8" m, DIN3852-E; 1/4"NPT m; 1/4"NPT f; 1/8"NPT m; 7/16"-20UNF f, SAE J512 without valve opener; 7/16"-20UNF f, SAE J512 with valve opener; 7/16"-20UNF m, SAE4 (J1926); 7/16"-20UNF m, DIN386 |
| Media temperature | –40°C ... +125°C |
| Ambient temperature | –40°C ... +105°C |
| Measuring range | ≤ 1 bar≤ 100 bar≤ 600 bar> 600 bar< 15 psi< 1500 psi< 7500 psi> 7500 psiRelative pressure |
