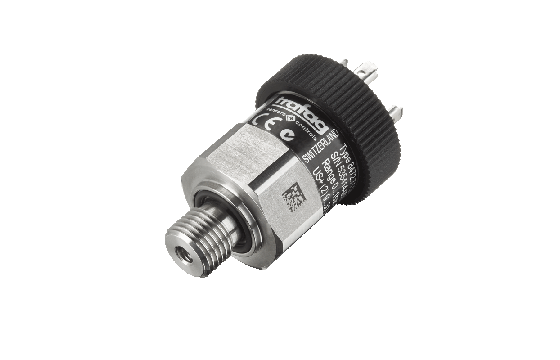

ECTN 8477 Marine Pressure Transmitter

Back to overview

Shipbuilding

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Main features

Measuring ranges from 100 mbar
Excellent media compatibility
Relative or absolute pressure measurement
Titanium version optional
Frontal membrane optional

About

The economic pressure transmitter ECTN 8477 is based on the tried and true ECT line of transmitters. The wide media temperature range from -25 to 125°C in combination with a comprehensive set of of features and options makes the ECTN 8477 pressure transmitter a versatile solution suitable for marine applications.

Technical Data

More Information
Product code	8477
Name	ECTN
Designation	Marine Pressure Transmitter
Product category	Pressure transmitters
Measuring range	0 ... 0.1 to 0 ... 250 bar 0 ... 1.5 to 0 ... 3000 psi
Measuring principle	Thick-film-on-ceramic
Applications	Engine manufacturing Shipbuilding
Approval / conformity	DNV-GL EU RO Mutual Recognition Type Approval Certificate
Accuracy @ 25°C typ.	± 0.3 % FS typ. (± 0.5 % FS typ., ± 1 % FS typ.)
Output signal	4 ... 20 mA
Electrical connections	EN175301-803-A (DIN43650-A); M12x1; Cable
Pressure connections	G1/4" f; G1/4" m; G1/2" m, DIN3852-A; G1/2" m, DIN3852-E; 1/4"NPT m; 7/16"-20UNF m, SAE4 (J1926); R1/4" m, DIN3858; G3/4" frontal membrane
Media temperature	-25°C ... +125°C
Ambient temperature	-25°C ... +125°C

Downloads Go to file downloads

Datasheet:

H72322r CN 8477 ECTN Marine Pressure Transmitter
cn
pdf 895.7KB
H72322r DE 8477 ECTN Marine Pressure Transmitter
de
pdf 816.7KB
H72322r EN 8477 ECTN Marine Pressure Transmitter
en
pdf 816.4KB
H72322r ES 8477 ECTN Marine Pressure Transmitter
es
pdf 815.9KB
H72322r FR 8477 ECTN Marine Pressure Transmitter
fr
pdf 816.1KB
H72322r IT 8477 ECTN Marine Pressure Transmitter
it
pdf 815.6KB
H72322r JP 8477 ECTN Marine Pressure Transmitter
jp
pdf 911.5KB
H72322r PL 8477 ECTN Marine Pressure Transmitter
pl
pdf 818.9KB
H72322r PT 8477 ECTN Marine Pressure Transmitter
pt
pdf 818.2KB

Manual:

H73324aa Instructions 8472 8473 8477 8478 ECT ECTN ECR Pressure Transmitter
en
pdf 409.4KB

Flyer:

H70688r CN 8477 ECTN Marine Pressure Transmitter
cn
pdf 5.7MB
H70688r DE 8477 ECTN Marine Pressure Transmitter
de
pdf 5.7MB
H70688r EN 8477 ECTN Marine Pressure Transmitter
en
pdf 5.7MB
H70688r ES 8477 ECTN Marine Pressure Transmitter
es
pdf 5.7MB
H70688r FR 8477 ECTN Marine Pressure Transmitter
fr
pdf 5.7MB
H70688r IT 8477 ECTN Marine Pressure Transmitter
it
pdf 5.7MB
H70688r JP 8477 ECTN Marine Pressure Transmitter
jp
pdf 5.7MB
H70688r PL 8477 ECTN Marine Pressure Transmitter
pl
pdf 5.7MB
H70688r PT 8477 ECTN Marine Pressure Transmitter
pt
pdf 5.7MB

Certificates:

CE UKCA Declaration of conformity Pressure Transmitter
en
pdf 73.9KB
DNVGL MR ECTN 8477
en
pdf 342.9KB

STEP files and software:

847X.XX.XX.10.05
en
STEP 1.6MB
847X.XX.XX.10.22 68
en
STEP 994.7KB
847X.XX.XX.10.35
en
STEP 379.3KB
847X.XX.XX.17.05
en
STEP 1.7MB
847X.XX.XX.17.22 68
en
STEP 1MB
847X.XX.XX.17.35
en
STEP 410.5KB
847X.XX.XX.19.05
en
STEP 1.6MB
847X.XX.XX.19.22 68
en
STEP 998.9KB
847X.XX.XX.19.35
en
STEP 383.4KB
847X.XX.XX.30.05
en
STEP 1.6MB
847X.XX.XX.30.22 68
en
STEP 1002.6KB
847X.XX.XX.30.35
en
STEP 386.9KB
847X.XX.XX.42.05
en
STEP 1.7MB
847X.XX.XX.42.22 68
en
STEP 1020.5KB
847X.XX.XX.42.35
en
STEP 404.4KB

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product

Grouped product items

Product Name	Measuring range [bar]	Over pressure max. [bar]	Output signal

0 ... 4

8

4 ... 20 mA

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8477 76 5917 05 0000 0000 19 58 61

0 ... 1

2

4 ... 20 mA

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8477 71 5917 05 0000 0000 19 58 61

0 ... 10

20

4 ... 20 mA

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8477 78 5917 05 0000 0000 19 58 61

0 ... 16

32

4 ... 20 mA

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8477 79 5917 05 0000 0000 19 58 61

0 ... 2.5

5

4 ... 20 mA

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8477 75 5917 05 0000 0000 19 58 61

0 ... 25

50

4 ... 20 mA

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8477 80 5917 05 0000 0000 19 58 61

0 ... 40

80

4 ... 20 mA

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8477 81 5917 05 0000 0000 19 58 61

0 ... 6

12

4 ... 20 mA

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8477 77 5917 05 0000 0000 19 58 61
