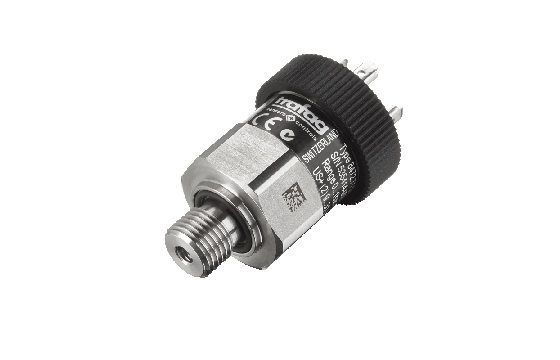

ECT 8472 Industrial Pressure Transmitter

Back to overview

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Main features

Excellent media compatibility
Relative or absolute pressure measurement
Titanium version optional
Wide temperature range

About

The economical pressure transmitter ECT 8472 is based on the tried and true ECT line of transmitters. The wide media temperature range from -25 to 125°C in combination with a comprehensive set of of features and options makes the ECT 8472 pressure transmitter a versatile solution suitable for most industrial applications.

Technical Data

More Information
Product code	8472
Name	ECT
Designation	Industrial Pressure Transmitter
Product category	Pressure transmitters
Measuring range	0 ... 1 to 0 ... 400 bar 0 ... 15 to 0 ... 5000 psi
Measuring principle	Thick-film-on-ceramic
Accuracy @ 25°C typ.	± 0.5 % FS typ.
Output signal	4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 ... 4.5 VDC ratiom.
Electrical connections	EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable
Pressure connections	G1/4" f; G1/4" m; G1/2" m, DIN3852-A; G1/2" m, DIN3852-E; G1/2" m, DIN3852-E, with inner cone; 1/4"NPT m, ANSI B1.20.1; 1/8"NPT m, ANSI B1.20.1; 7/16"-20UNF m, SAE4 (J1926); 7/16”-20UNF m, DIN3866; 7/16”-20UNF f, SAE J512, valve opener; 9/16"-18UNF m, SAE
Media temperature	-25°C ... +125°C 400 bar/5000 psi: -10°C ... +125°C
Ambient temperature	max. -25°C ... +125°C (UL-rated ambient temperature: -20°C ... +80°C) 400 bar/5000 psi: -10°C ...+125°C details see section Electrical Connection

Downloads Go to file downloads

Datasheet:

H72324ar CN 8472 ECT Industrial Pressure Transmitter
cn
pdf 883.3KB
H72324ar DE 8472 ECT Industrial Pressure Transmitter
de
pdf 807.6KB
H72324ar EN 8472 ECT Industrial Pressure Transmitter
en
pdf 806.4KB
H72324ar ES 8472 ECT Industrial Pressure Transmitter
es
pdf 809.2KB
H72324ar FR 8472 ECT Industrial Pressure Transmitter
fr
pdf 809.1KB
H72324ar IT 8472 ECT Industrial Pressure Transmitter
it
pdf 808.5KB
H72324ar JP 8472 ECT Industrial Pressure Transmitter
jp
pdf 891.7KB
H72324ar PL 8472 ECT Industrial Pressure Transmitter
pl
pdf 810KB
H72324ar PT 8472 ECT Industrial Pressure Transmitter
pt
pdf 809.5KB

Manual:

H73324ab Instructions 8472 8473 8477 8478 ECT ECTN ECR Pressure Transmitter
en
pdf 461.1KB

Flyer:

H70662ar CN 8472 ECT Industrial Pressure Transmitter
cn
pdf 4MB
H70662ar DE 8472 ECT Industrial Pressure Transmitter
de
pdf 4MB
H70662ar EN 8472 ECT Industrial Pressure Transmitter
en
pdf 4MB
H70662ar ES 8472 ECT Industrial Pressure Transmitter
es
pdf 4MB
H70662ar FR 8472 ECT Industrial Pressure Transmitter
fr
pdf 4MB
H70662ar IT 8472 ECT Industrial Pressure Transmitter
it
pdf 4MB
H70662ar JP 8472 ECT Industrial Pressure Transmitter
jp
pdf 4MB
H70662ar PL 8472 ECT Industrial Pressure Transmitter
pl
pdf 4MB
H70662ar PT 8472 ECT Industrial Pressure Transmitter
pt
pdf 4MB

Certificates:

Trafag UL Certificate E516645 Vol1 Sec1 20240220
en
pdf 454.3KB
CE UKCA Declaration of conformity Pressure Transmitter
en
pdf 73.9KB

STEP files and software:

847X.XX.X7.17.01
en
STEP 638.2KB
847X.XX.X7.17.35
en
STEP 337.2KB
847X.XX.X7.17.51
en
STEP 851.3KB
847X.XX.X9.42.01
en
STEP 679.8KB
847X.XX.X9.42.35
en
STEP 378.8KB
847X.XX.X9.42.51
en
STEP 893.3KB
847X.XX.XX.10.01
en
STEP 680.3KB
847X.XX.XX.10.05
en
STEP 1.6MB
847X.XX.XX.10.22 68
en
STEP 994.7KB
847X.XX.XX.10.35
en
STEP 379.3KB
847X.XX.XX.10.51
en
STEP 894KB
847X.XX.XX.17.01
en
STEP 711.5KB
847X.XX.XX.17.05
en
STEP 1.7MB
847X.XX.XX.17.22 68
en
STEP 1MB
847X.XX.XX.17.35
en
STEP 410.5KB
847X.XX.XX.17.51
en
STEP 926KB
847X.XX.XX.18.01
en
STEP 676.5KB
847X.XX.XX.18.05
en
STEP 1.6MB
847X.XX.XX.18.22 68
en
STEP 990.7KB
847X.XX.XX.18.35
en
STEP 375.5KB
847X.XX.XX.18.51
en
STEP 890KB
847X.XX.XX.19.01
en
STEP 684.5KB
847X.XX.XX.19.05
en
STEP 1.6MB
847X.XX.XX.19.22 68
en
STEP 998.9KB
847X.XX.XX.19.35
en
STEP 383.4KB
847X.XX.XX.19.51
en
STEP 898.2KB
847X.XX.XX.24.01
en
STEP 739.9KB
847X.XX.XX.24.05
en
STEP 1.6MB
847X.XX.XX.24.22 68
en
STEP 1MB
847X.XX.XX.24.35
en
STEP 438.8KB
847X.XX.XX.24.51
en
STEP 955.1KB
847X.XX.XX.30.01
en
STEP 688KB
847X.XX.XX.30.05
en
STEP 1.6MB
847X.XX.XX.30.22 68
en
STEP 1002.6KB
847X.XX.XX.30.35
en
STEP 386.9KB
847X.XX.XX.30.51
en
STEP 901.9KB
847X.XX.XX.41.01
en
STEP 709.3KB
847X.XX.XX.41.05
en
STEP 1.7MB
847X.XX.XX.41.22 68
en
STEP 1MB
847X.XX.XX.41.35
en
STEP 408.2KB
847X.XX.XX.41.51
en
STEP 923.7KB
847X.XX.XX.42.01
en
STEP 705.4KB
847X.XX.XX.42.05
en
STEP 1.7MB
847X.XX.XX.42.22 68
en
STEP 1020.5KB
847X.XX.XX.42.35
en
STEP 404.4KB
847X.XX.XX.42.51
en
STEP 919.8KB

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product

Grouped product items

Product Name	Measuring range [bar]	Over pressure max. [bar]	Output signal

ECT1.0A

0 ... 1

3.2

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8472 71 5717 05 0000 0000 19 58 61

ECT2.5A

0 ... 2.5

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8472 75 5717 05 0000 0000 19 58 61

ECT6.0A

0 ... 6

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8472 77 5717 05 0000 0000 19 58 61

ECT10.0A

0 ... 10

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8472 78 5717 05 0000 0000 19 58 61

ECT16.0A

0 ... 16

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8472 79 5717 05 0000 0000 19 58 61

ECT25.0A

0 ... 25

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8472 80 5717 05 0000 0000 19 58 61

ECT40.0A

0 ... 40

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8472 81 5717 05 0000 0000 19 58 61

ECT10.0V

0 ... 10

0 ... 10 VDC

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8472 78 5717 05 0000 0000 17 58 61

ECT1.0V

0 ... 1

3.2

0 ... 10 VDC

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8472 71 5717 05 0000 0000 17 58 61

ECT2.5V

0 ... 2.5

0 ... 10 VDC

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8472 75 5717 05 0000 0000 17 58 61

ECT6.0V

0 ... 6

0 ... 10 VDC

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8472 77 5717 05 0000 0000 17 58 61

ECT16.0V

0 ... 16

0 ... 10 VDC

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8472 79 5717 05 0000 0000 17 58 61

ECT25.0V

0 ... 25

0 ... 10 VDC

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8472 80 5717 05 0000 0000 17 58 61

ECT40.0V

0 ... 40

0 ... 10 VDC

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8472 81 5717 05 0000 0000 17 58 61

ECT1.6A

0 ... 1.6

3.2

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8472 73 5717 05 0000 0000 19 58 61

ECT1.6V

0 ... 1.6

3.2

0 ... 10 VDC

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8472 73 5717 05 0000 0000 17 58 61

ECT4.0A

0 ... 4

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8472 76 5717 05 0000 0000 19 58 61

ECT4.0V

0 ... 4

0 ... 10 VDC

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8472 76 5717 05 0000 0000 17 58 61

ECT60.0A

0 ... 60

120

4 ... 20 mA

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 9 ... 30

Pressure connection: G1/4" male

Type Code: 8472 82 5717 05 0000 0000 19 58 61

ECT60.0V

0 ... 60

120

0 ... 10 VDC

Accuracy @ 25°C typ.: ± 0.5

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply [VDC]: 15 ... 30

Pressure connection: G1/4" male

Type Code: 8472 82 5717 05 0000 0000 17 58 61
