Simple Apparatus conformity to ATEX 947 Pressostat

Back to overview

Skip to the end of the images gallery

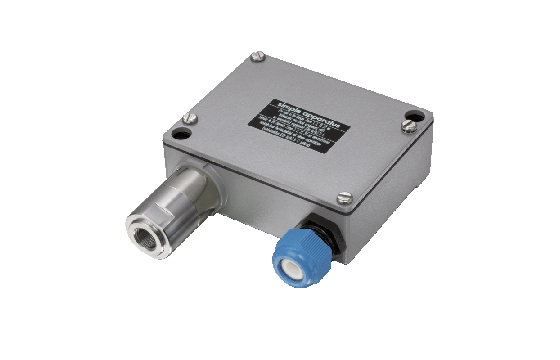

main product photo

Skip to the beginning of the images gallery

Main features

Compact design
Rugged housing
Protection IP65
Any mounting position possible
May be used as „simple apparatus“ in zones at risk of explosions

About

Technical Data

More Information
Product code	947
Name	«Simple Apparatus» ATEX
Designation	Industrial pressostat
Product category	Mechanical pressure switches
Measuring range	1 ... 10 to 60 ... 600 bar
Measuring principle	Piston
Approval / conformity	EN60730-1/ EN60730-2-6: Type 2.B.H EN60079-0, EN60079-11 Zone 1 + 2, 21 + 22
Repeatability	± 1.0 % FS typ.
Output signal	1 Floating change-over contact (SPDT)
Media temperature	O-Ring NBR: -30°C ... +100°C O-Ring FKM: -15°C ... +150°C
Ambient temperature	-25°C ... 70°C

Downloads Go to file downloads

Manual:

H73624f 624-634 645-650 664 Ministat Ambistat Galvanostat Instruction
en
pdf 535.1KB
