Main features
- Excellent long-term stability
- High resistance to over pressure
- Completely welded steel sensor system without additional seals
- Different accuracy classes
About

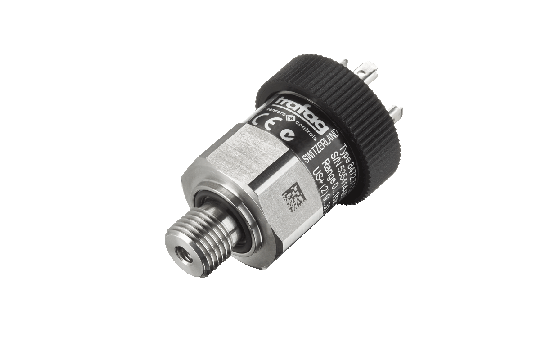

The industrial pressure transmitter EPN 8288, like its reliable predecessor the EPN 8298, has an exceptional ruggedness and a strong thin-film-on-steel sensor cell. The triple overpressure safety, a wide temperature range of up to 125°C and the marine certifications make the EPN 8288 the ideal solution for a wide variety of challenging applications.
Technical Data
| Product code | 8288 |
|---|---|
| Name | EPN |
| Designation | Marine Pressure Transmitter |
| Product category | Pressure transmitters |
| Measuring range | 0 ... 2.5 to 0 ... 600 bar 0 ... 30 to 0 ... 7500 psi |
| Measuring principle | Thin-film-on-steel |
| Approval / conformity | DNV-GL EU RO Mutual Recognition Type Approval Certificate |
| Accuracy @ 25°C typ. | ± 0.5 % FS typ. ± 0.3 % FS typ. |
| Output signal | 4 ... 20 mA, 0 ... 10 VDC |
| Electrical connections | EN175301-803-A (DIN43650-A) |
| Pressure connections | G1/4" m Seal; G1/2" m (Manometer) EN 837; 1/4" NPT m; 1/2" NPT m; R1/4" m, DIN3858; M14x1.5 m, DIN6149-2; 9/16"-18UNF m, SAE6 (J1926) |
| Media temperature | –40°C ... +125°C |
| Ambient temperature | –40°C ... +125°C |
| Measuring range | ≤ 100 bar≤ 600 bar< 1500 psi< 7500 psi |
