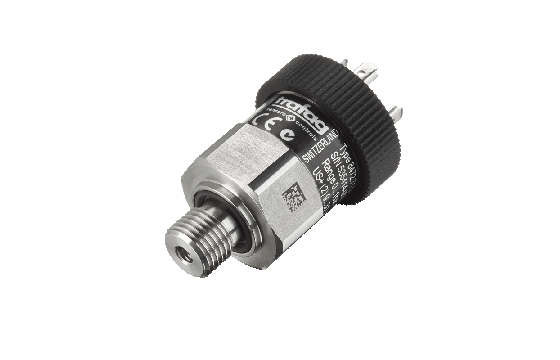

EPI 8287 Industrial Pressure Transmitter

Back to overview

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Main features

Excellent long-term stability
Completely welded steel sensor system without additional seals
Accuracy classes 0.3%, 0.5%
Optional: 5-fold overpressure resistance
Optionally with housing material AISI316L

About

The industrial pressure transmitter EPI 8287 features the extremely robust and stable thin-film-on-steel sensor element from its well-proven predecessor EPI 8297. In combination with the new inhouse developed ASIC TX it offers a wide temperature range up to 125°C and triple overpressure safety which makes it the perfect solution for a wide range of demanding applications.

Technical Data

More Information
Product code	8287
Name	EPI
Designation	Industrial Pressure Transmitter
Product category	Pressure transmitters
Measuring range	0 ... 2.5 to 0 ... 700 bar 0 ... 30 to 0 ... 10000 psi
Measuring principle	Thin-film-on-steel
Accuracy @ 25°C typ.	± 0.5 % FS typ. ± 0.3 % FS typ.
Output signal	4 ... 20 mA, 0 ... 5 VDC, 0.5 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 … 4.5 VDC ratiometric
Electrical connections	EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; MIL-C 26482; DIN72585; Cable
Pressure connections	G1/4 f; G1/4 m Seal; G1/4 m with integrated damping; G1/4 m (Manometer) EN 837; G1/2 m (Manometer) EN 837; 1/4NPT m; 1/4- 18 NPT f; 1/2NPT m; R1/4 m, DIN3858; M14x1.5 m, DIN6149-2; 7/16-20UNF m, DIN3866; 7/16-20U
Media temperature	-40°C ... +125°C
Ambient temperature	max. -40°C ... +125°C (UL-rated ambient temperature: -20°C ... +80°C) details see section Electrical Connection
Output signal	4 … 20 mA 0 … 5 VDC 0 … 10 VDC 1 … 6 VDC 0.5 … 4.5 VDC ratiometric
Special features	High overpressure

Downloads Go to file downloads

Datasheet:

H72317ad CN 8287 EPI Industrial Pressure Transmitter
cn
pdf 987.1KB
H72317ad DE 8287 EPI Industrial Pressure Transmitter
de
pdf 911.8KB
H72317ad EN 8287 EPI Industrial Pressure Transmitter
en
pdf 911KB
H72317ad ES 8287 EPI Industrial Pressure Transmitter
es
pdf 912.3KB
H72317ad FR 8287 EPI Industrial Pressure Transmitter
fr
pdf 912.2KB
H72317ad IT 8287 EPI Industrial Pressure Transmitter
it
pdf 911.9KB
H72317ad JP 8287 EPI Industrial Pressure Transmitter
jp
pdf 1002KB
H72317ad PL 8287 EPI Industrial Pressure Transmitter
pl
pdf 913.5KB
H72317ad PT 8287 EPI Industrial Pressure Transmitter
pt
pdf 912.9KB

Manual:

H73317o Instructions 8283 8287 8288 EPR EPI EPN Pressure Transmitter
en
pdf 479.9KB

Certificates:

Trafag UL Certificate E516645 Vol1 Sec1 current
en
pdf 324.8KB
CE UKCA Declaration of conformity Pressure Transmitter
en
pdf 73.9KB
DNVGL MR EPN 8288
en
pdf 96.1KB

STEP files and software:

828X.XX.XX.10.01
en
STEP 672.1KB
828X.XX.XX.10.05
en
STEP 1.6MB
828X.XX.XX.10.35
en
STEP 371KB
828X.XX.XX.10.51
en
STEP 885.5KB
828X.XX.XX.11.01
en
STEP 685.9KB
828X.XX.XX.11.05
en
STEP 1.7MB
828X.XX.XX.11.35
en
STEP 384.9KB
828X.XX.XX.11.51
en
STEP 899.7KB
828X.XX.XX.15.01
en
STEP 713.8KB
828X.XX.XX.15.05
en
STEP 1.7MB
828X.XX.XX.15.35
en
STEP 412.7KB
828X.XX.XX.15.51
en
STEP 928.4KB
828X.XX.XX.17.01
en
STEP 711.2KB
828X.XX.XX.17.05
en
STEP 1.7MB
828X.XX.XX.17.35
en
STEP 410.2KB
828X.XX.XX.17.51
en
STEP 925.7KB
828X.XX.XX.18.01
en
STEP 670.8KB
828X.XX.XX.18.05
en
STEP 1.6MB
828X.XX.XX.18.35
en
STEP 369.7KB
828X.XX.XX.18.51
en
STEP 884.2KB
828X.XX.XX.19.01
en
STEP 672.6KB
828X.XX.XX.19.05
en
STEP 1.6MB
828X.XX.XX.19.35
en
STEP 371.6KB
828X.XX.XX.19.51
en
STEP 886.1KB
828X.XX.XX.24.01
en
STEP 792.8KB
828X.XX.XX.24.05
en
STEP 1.8MB
828X.XX.XX.24.35
en
STEP 491.8KB
828X.XX.XX.24.51
en
STEP 1009.6KB
828X.XX.XX.30.01
en
STEP 672.3KB
828X.XX.XX.30.05
en
STEP 1.6MB
828X.XX.XX.30.35
en
STEP 371.3KB
828X.XX.XX.30.51
en
STEP 885.8KB
828X.XX.XX.31.01
en
STEP 701.3KB
828X.XX.XX.31.05
en
STEP 1.7MB
828X.XX.XX.31.35
en
STEP 400.2KB
828X.XX.XX.31.51
en
STEP 915.5KB
828X.XX.XX.42.01
en
STEP 693.3KB
828X.XX.XX.42.05
en
STEP 1.7MB
828X.XX.XX.42.35
en
STEP 392.3KB
828X.XX.XX.42.51
en
STEP 907.3KB
828X.XX.XX.51.01
en
STEP 672KB
828X.XX.XX.51.05
en
STEP 1.6MB
828X.XX.XX.51.35
en
STEP 371.1KB
828X.XX.XX.51.51
en
STEP 885.4KB

Did you not find the product information you were looking for? Please contact our sales team.

Standard variants of this product

Grouped product items

Product Name	Measuring range [bar]	Over pressure max. [bar]	Output signal

EPI2.5A

0 ... 2.5

7.5

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 75 2517 05 0000 0000 19 44 58 61

EPI4.0A

0 ... 4

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 76 2517 05 0000 0000 19 44 58 61

EPI6.0A

0 ... 6

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 77 2517 05 0000 0000 19 44 58 61

EPI10.0A

0 ... 10

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 78 2517 05 0000 0000 19 44 58 61

EPI16.0A

0 ... 16

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 79 2517 05 0000 0000 19 44 58 61

EPI25.0A

0 ... 25

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 80 2517 05 0000 0000 19 44 58 61

EPI40.0A

0 ... 40

120

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 81 2517 05 0000 0000 19 44 58 61

EPI60.0A

0 ... 60

180

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 82 2517 05 0000 0000 19 44 58 61

EPI100.0A

0 ... 100

300

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 83 2517 05 0000 0000 19 44 58 61

EPI160.0A

0 ... 160

480

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 85 2517 05 0000 0000 19 44 58 61

EPI250.0A

0 ... 250

750

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 74 2517 05 0000 0000 19 44 58 61

EPI400.0A

0 ... 400

1000

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 84 2517 05 0000 0000 19 44 58 61

EPI600.0A

0 ... 600

1500

4 ... 20 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 9 ... 32

Type Code: 8287 86 2517 05 0000 0000 19 44 58 61

EPI2.5V

0 ... 2.5

7.5

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 75 2517 05 0000 0000 17 44 58 61

EPI4.0V

0 ... 4

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 76 2517 05 0000 0000 17 44 58 61

EPI6.0V

0 ... 6

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 77 2517 05 0000 0000 17 44 58 61

EPI10.0V

0 ... 10

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 78 2517 05 0000 0000 17 44 58 61

EPI16.0V

0 ... 16

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 79 2517 05 0000 0000 17 44 58 61

EPI25.0V

0 ... 25

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 80 2517 05 0000 0000 17 44 58 61

EPI40.0V

0 ... 40

120

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 81 2517 05 0000 0000 17 44 58 61

EPI60.0V

0 ... 60

180

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 82 2517 05 0000 0000 17 44 58 61

EPI100.0V

0 ... 100

300

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 83 2517 05 0000 0000 17 44 58 61

EPI160.0V

0 ... 160

480

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 85 2517 05 0000 0000 17 44 58 61

EPI250.0V

0 ... 250

750

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 74 2517 05 0000 0000 17 44 58 61

EPI400.0V

0 ... 400

1000

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 84 2517 05 0000 0000 17 44 58 61

EPI600.0V

0 ... 600

1500

0 ... 10 mA

NLH @ 25°C (BSL) FS typ.: ± 0.2

Supply: 15 ... 32

Type Code: 8287 86 2517 05 0000 0000 17 44 58 61
